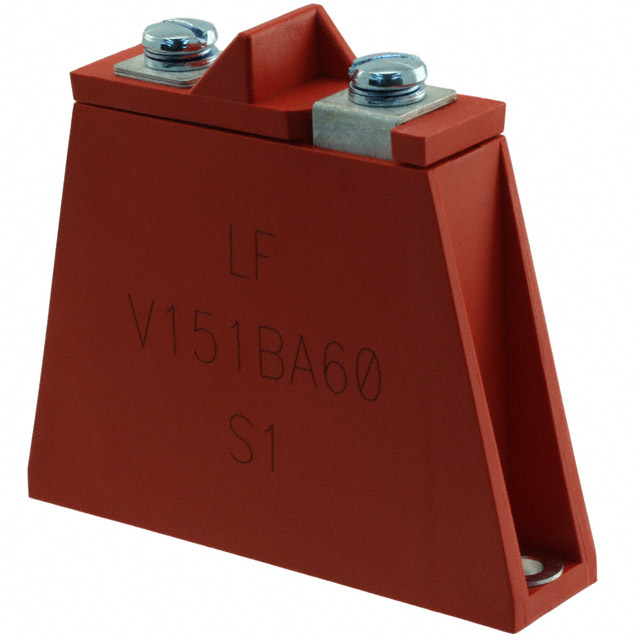

V151BA60

Manufacturer :

Littelfuse

Product Category :

Lead Pitch :

40mm

Voltage - Rated DC :

200V

Pbfree Code :

yes

Published :

2005

Varistor Voltage (Max) :

264V

Rated Power Dissipation (P) :

2.5W

Lead/Base Style :

Screw

Mounting Type :

Chassis Mount

Terminal Placement :

Radial

JESD-609 Code :

e3

Packaging :

Bulk

Varistor Voltage :

240V

Lead Free :

Contains Lead

HTS Code :

8533.40.40.00

Max Voltage Rating (DC) :

200V

Package / Case :

Encased Disc

Varistor Voltage (Min) :

216V

Clamping Voltage :

400V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Voltage - Rated AC :

150V

Number of Circuits :

1

Length :

100mm

Max Voltage Rating (AC) :

150V

ECCN Code :

EAR99

Capacitance @ Frequency :

16000pF @ 1MHz

REACH SVHC :

Unknown

Clamping Current :

200A

Mount :

Bolt, Chassis Mount, Surface Mount

Depth :

23.5mm

Max Output Current :

50kA

Factory Lead Time :

15 Weeks

Max Surge Current :

50kA

Terminal Finish :

Matte Tin (Sn)

Capacitance :

16nF

Resistor Type :

VARISTOR

Terminal Shape :

Binding Post

Series :

BA

Number of Terminations :

2

Operating Temperature :

-55°C~85°C TA

RoHS Status :

ROHS3 Compliant

Energy :

530J
