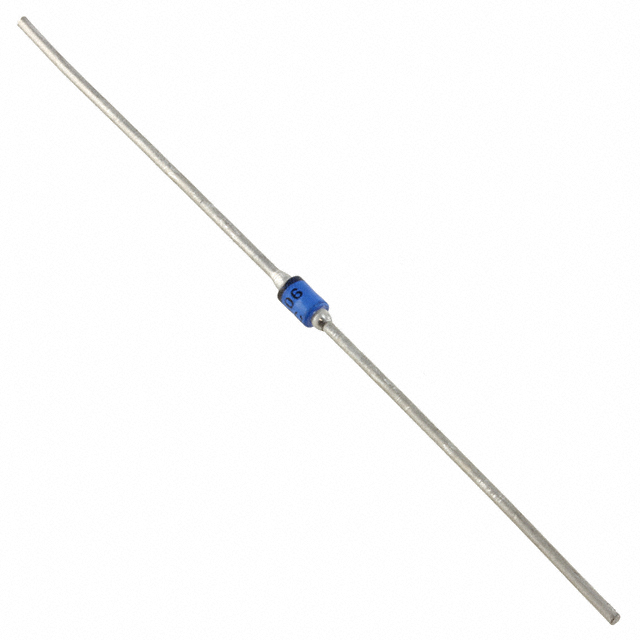

UZ118

Manufacturer :

Microchip Technology

Product Category :

Diodes - Zener - Single

Terminal Form :

Wire

JESD-30 Code :

O-LALF-W2

Additional Feature :

METALLURGICALLY BONDED

Reach Compliance Code :

Unknown

Terminal Position :

Axial

Series :

-

Product Category :

Zener Diodes

Mounting Type :

Through Hole

ECCN Code :

EAR99

Package / Case :

A, Axial

Pbfree Code :

No

Brand :

Microchip Technology

Power - Max :

3 W

Surface Mount :

No

Package :

Bulk

Voltage Tol-Max :

5%

JESD-609 Code :

e0

Current - Reverse Leakage @ Vr :

1 μA @ 137 V

Voltage - Zener (Nom) (Vz) :

180 V

Package Shape :

Round

RoHS :

N

Technology :

Zener

Product Status :

Active

Supplier Device Package :

A, Axial

Number of Terminals :

2

Product Type :

Zener Diodes

HTS Code :

8541.10.00.50

Number of Elements :

1

Power Dissipation-Max :

3 W

Impedance (Max) (Zzt) :

850 Ohms

Operating Temperature :

-65°C ~ 175°C

Manufacturer :

Microchip

Case Connection :

Isolated

Terminal Finish :

TIN LEAD

Tolerance :

±5%

Polarity :

Unidirectional

Diode Element Material :

SILICON

Configuration :

Single

Working Test Current :

4 mA

Qualification Status :

Not Qualified

Diode Type :

ZENER DIODE

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Subcategory :

Diodes and Rectifiers
