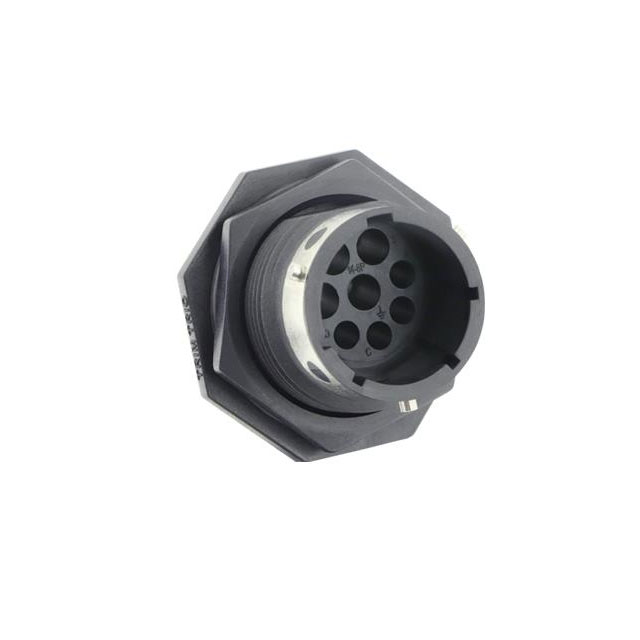

UTGX7148P
Or copy the link below:
- Mfr.Part #
- UTGX7148P
- Manufacturer
- Souriau-Sunbank by Eaton
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HSG MALE 8POS PNL MNT
- Stock
- 28,156
- In Stock ：
- 28,156
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Souriau-Sunbank by Eaton
- Product Category :
- Circular Connector Housings
- Mounting Feature :
- Bulkhead - Front Side Nut
- Fastening Type :
- Bayonet Lock
- Contact Size :
- 12 (4), 16 (4)
- Product Category :
- Standard Circular Connector
- Shell Finish :
- -
- Package :
- Bag
- Manufacturer :
- Souriau
- Mounting Type :
- Panel Mount
- Contact Plating :
- Gold
- Ingress Protection :
- IP68/IP69K - Dust Tight, Water Resistant, Waterproof
- Contact Shape :
- Circular
- Base Product Number :
- UTGX7
- Flammability Rating :
- UL 94 V-0
- Shell Size, MIL :
- -
- Housing Color :
- Black
- Contact Gender :
- Pin (Male)
- Shielding :
- Unshielded
- Shell Size - Insert :
- 14-8
- Orientation :
- N (Normal)
- Contact Type :
- Crimp
- Shell Size :
- 14
- Termination Style :
- Crimp
- Mounting Style :
- Panel
- IP Rating :
- IP65, IP67, IP69K
- Shell Material :
- Polyamide (PA), Nylon
- Insert Material :
- Polyamide (PA), Nylon
- Product :
- Receptacles
- Contact Material :
- Brass
- Series :
- UTGX
- Operating Temperature :
- -40°C ~ 105°C
- Mounting Angle :
- Straight
- Housing Gender :
- FEMALE
- Product Type :
- Standard Circular Connector
- Current Rating :
- +/- 5 A, +/- 25 A
- Includes :
- 3 pcs - 1 Connector, 1 Nut, 1 O-Ring
- Subcategory :
- Circular Connectors
- Number of Positions :
- 8 (7 Power + PE)
- Shell Style :
- Jam Nut
- Brand :
- Souriau
- Note :
- Contacts Not Included
- Mating Style :
- Bayonet
- RoHS :
- Details
- Thread Size :
- 1 in-20 UNEF
- Mating Cycles :
- 500 Cycles
- Color :
- Black
- Product Status :
- Active
- Material Flammability Rating :
- UL94 V-0
- Type :
- For Male Pins
- Connector Type :
- Receptacle Housing
- Features :
- UV Resistant
- Voltage Rating :
- 600 V
- Datasheets
- UTGX7148P
UTGX7148P Documents
Receptacle Housing Polyamide (PA), Nylon Panel Mount 8 (7 Power + PE) Positions - N (Normal) Bayonet Lock
UTGX7148P Overview
Packaging is in the form of Receptacle Housing.This device has a Panel Mount mounting type.Specifically, it is one of the products in the UTGX Series.Devices operate at -40°C ~ 105°C operating temperatures.
UTGX7148P Features
UTGX series
UTGX7148P Applications
There are a lot of Souriau-Sunbank by Eaton
UTGX7148P Circular Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
