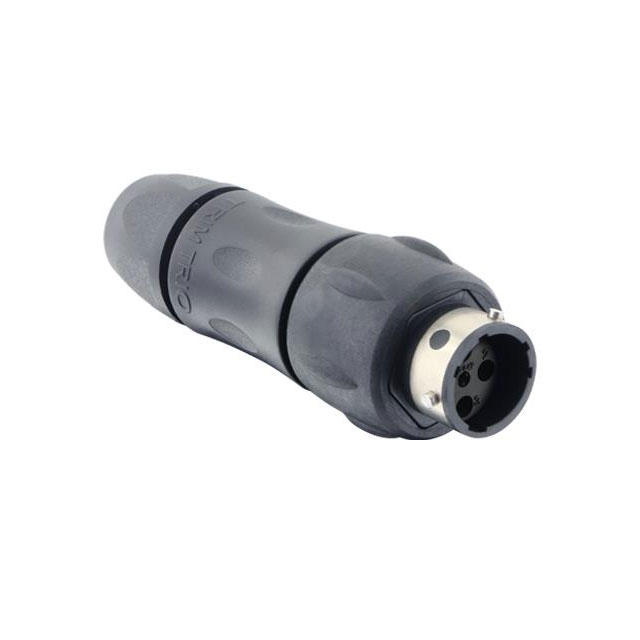

UTGX1JC124P

Manufacturer :

Souriau-Sunbank by Eaton

Product Category :

Circular Connector Housings

Color :

Black

Features :

Backshell, UV Resistant

Mating Cycles :

500 Cycles

Shell Size, MIL :

-

Fastening Type :

Bayonet Lock

Shielding :

Unshielded

IP Rating :

IP65, IP67, IP69K

Orientation :

N (Normal)

Shell Size :

12

Type :

For Male Pins

Shell Finish :

-

Number of Positions :

4 (3 + PE)

Product :

Receptacles

Insert Material :

Polyamide (PA), Nylon

Mating Style :

Bayonet

Connector Type :

Receptacle Housing

Ingress Protection :

IP68/IP69K - Dust Tight, Water Resistant, Waterproof

Series :

UTGX

Number of Contacts :

4

RoHS :

Details

Base Product Number :

UTGX1

Brand :

Souriau

Contact Gender :

Pin (Male)

Diameter :

19.15 mm

Package :

Bag

Mounting Type :

Free Hanging (In-Line)

Subcategory :

Circular Connectors

Voltage Rating :

500 V

Includes :

3 pcs - 1 Connector, 1 Backshell, 1 O-Ring

Current Rating :

16 A

Product Status :

Active

Manufacturer :

Souriau

Operating Temperature :

-40°C ~ 105°C

Flammability Rating :

UL 94 V-0

Termination Style :

Crimp

Contact Size :

16

Mounting Angle :

Straight

Mounting Feature :

-

Contact Plating :

-

Housing Gender :

FEMALE

Product Category :

Standard Circular Connector

Termination Method :

Crimp

Shell Size - Insert :

12-4

Housing Color :

Black

Shell Style :

Straight

Material Flammability Rating :

UL94 V-0

Accessory Type :

-

Contact Material :

Brass

Wire Gauge :

14 AWG

Contact Shape :

Circular

Mounting Style :

CABLE

Note :

Contacts Not Included

Product Type :

Standard Circular Connector

Shell Material :

Polyamide (PA), Nylon

Contact Type :

Crimp
