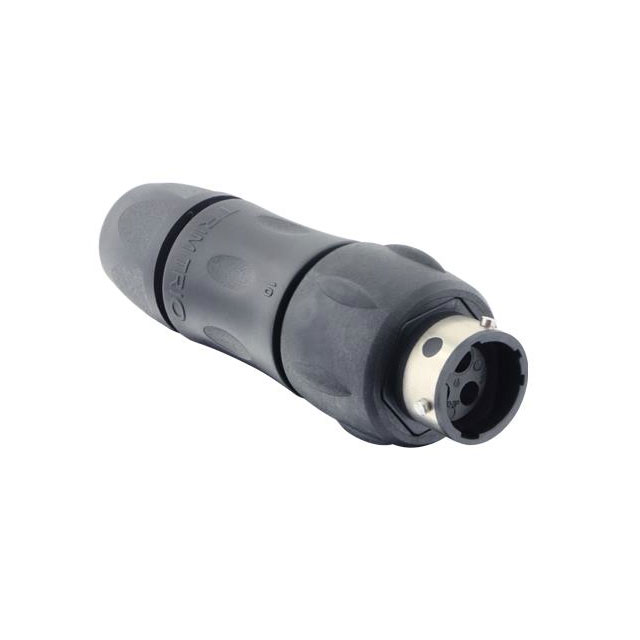

UTGX1JC103P

Manufacturer :

Souriau-Sunbank by Eaton

Product Category :

Circular Connector Housings

Shell Size - Insert :

10-3

Product Status :

Active

Shell Size :

10

RoHS :

Details

Number of Contacts :

3

Material Flammability Rating :

UL94 V-0

Flammability Rating :

UL 94 V-0

Contact Shape :

Circular

IP Rating :

IP65, IP67, IP69K

Voltage Rating :

500 V

Contact Size :

16

Insert Material :

Polyamide (PA), Nylon

Mating Style :

Bayonet

Contact Gender :

Pin (Male)

Color :

Black

Current Rating :

10 A

Shell Finish :

-

Mating Cycles :

500 Cycles

Shell Style :

Straight

Fastening Type :

Bayonet Lock

Shell Material :

Polyamide (PA), Nylon

Shell Size, MIL :

-

Product :

Receptacles

Manufacturer :

Souriau

Contact Material :

Brass

Product Type :

Standard Circular Connector

Mounting Style :

CABLE

Includes :

3 pcs - 1 Connector, 1 Backshell, 1 O-Ring

Contact Plating :

-

Type :

For Male Pins

Subcategory :

Circular Connectors

Connector Type :

Receptacle Housing

Housing Color :

Black

Wire Gauge :

16 AWG

Housing Gender :

FEMALE

Accessory Type :

-

Note :

Contacts Not Included

Mounting Type :

Free Hanging (In-Line)

Shielding :

Unshielded

Mounting Feature :

-

Contact Type :

Crimp

Ingress Protection :

IP68/IP69K - Dust Tight, Water Resistant, Waterproof

Orientation :

N (Normal)

Diameter :

15.2 mm

Base Product Number :

UTGX1

Series :

UTGX

Termination Style :

Crimp

Operating Temperature :

-40°C ~ 105°C

Product Category :

Standard Circular Connector

Features :

Backshell, UV Resistant

Brand :

Souriau

Number of Positions :

3 (2 + PE)

Mounting Angle :

Straight

Termination Method :

Crimp

Package :

Bag
