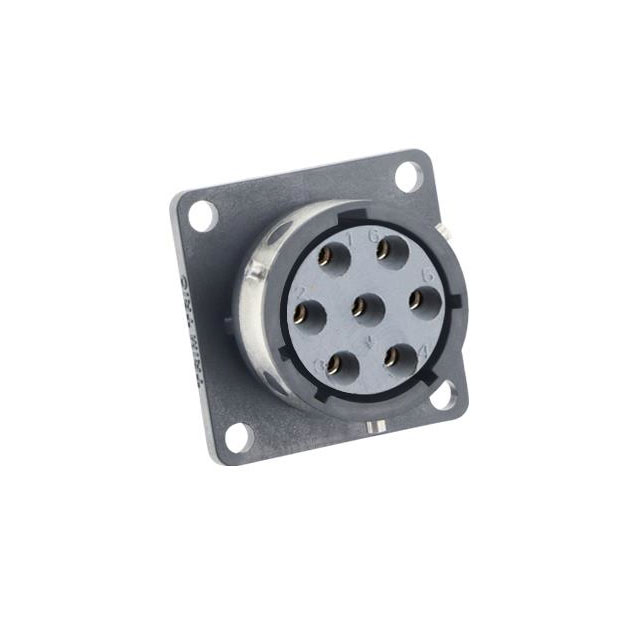

UTGX014D7S

Manufacturer :

Souriau-Sunbank by Eaton

Product Category :

Circular Connector Assemblies

Features :

UV Resistant

Fastening Type :

Bayonet Lock

Product :

Receptacles

Mating Cycles :

500 Cycles

Shell Size :

14

Brand :

Souriau

RoHS :

Details

Base Product Number :

UTGX0

Contact Plating :

Gold

Flammability Rating :

UL 94 V-0

Mounting Angle :

Straight

Operating Temperature :

-40°C ~ 105°C

Manufacturer :

Souriau

Connector Type :

Receptacle, Female Sockets

Wire Gauge :

16 AWG

Series :

UTGX

Termination Style :

Solder

Orientation :

N (Normal)

Product Type :

Standard Circular Connector

Contact Material :

Brass

Insert Material :

Polychloroprene

Primary Material :

Plastic

IP Rating :

IP65, IP67, IP69K

Contact Gender :

Socket (Female)

Material Flammability Rating :

UL94 V-0

Shell Size - Insert :

14-7

Current Rating :

12 A

Shell Style :

Square Flange

Number of Positions :

7 (6 + PE)

Backshell Material, Plating :

-

Color :

Black

Housing Gender :

FEMALE

Product Category :

Standard Circular Connector

Shell Size, MIL :

-

Product Status :

Active

Contact Finish Thickness - Mating :

-

Termination :

Solder

Contact Finish - Mating :

-

Voltage Rating :

600V

Shielding :

Unshielded

Mating Style :

Bayonet

Cable Opening :

-

Shell Finish :

-

Current Rating (Amps) :

12A

Ingress Protection :

IP68/IP69K - Dust Tight, Water Resistant, Waterproof

Subcategory :

Circular Connectors

Shell Material :

Polyamide (PA), Nylon

Mounting Feature :

Flange

Applications :

Automation, Industrial, Instrumentation, Testing Equipment

Mounting Type :

Panel Mount, Through Hole

Package :

Bag

Mounting Style :

Panel

Thread Size :

13/16-20 UNEF
