USL1J

Manufacturer :

Diotec Semiconductor

Product Category :

Diodes - Rectifiers - Single

Terminal Form :

Flat

PCB changed :

2

Maximum Continuous Forward Current (A) :

1

ECCN (US) :

EAR99

Maximum Operating Temperature (°C) :

150

Terminal Position :

Dual

Diode Element Material :

SILICON

Peak Reverse Current (uA) :

1

ECCN Code :

EAR99

Package Length :

2.8

Peak Forward Voltage (V) :

1.7

RoHS Status :

Yes with exemptions

Minimum Operating Temperature (°C) :

-50

Subcategory :

Rectifier Diodes

Mounting :

Surface Mount

Number of Elements :

1

Military :

No

Configuration :

Single

Reach Compliance Code :

Compliant

Package Shape :

RECTANGULAR

Standard Package Name :

SOD

Output Current-Max :

1 A

Surface Mount :

yes

Diode Type :

RECTIFIER DIODE

Peak Reverse Repetitive Voltage (V) :

600

Supplier Temperature Grade :

COMMERCIAL

Package Width :

1.8

Number of Terminals :

2

Manufacturer :

Diotec Semiconductor AG

Reverse Recovery Time-Max :

0.075 μs

Rep Pk Reverse Voltage-Max :

600 V

Non-rep Pk Forward Current-Max :

25 A

Package Height :

1.3

Supplier Package :

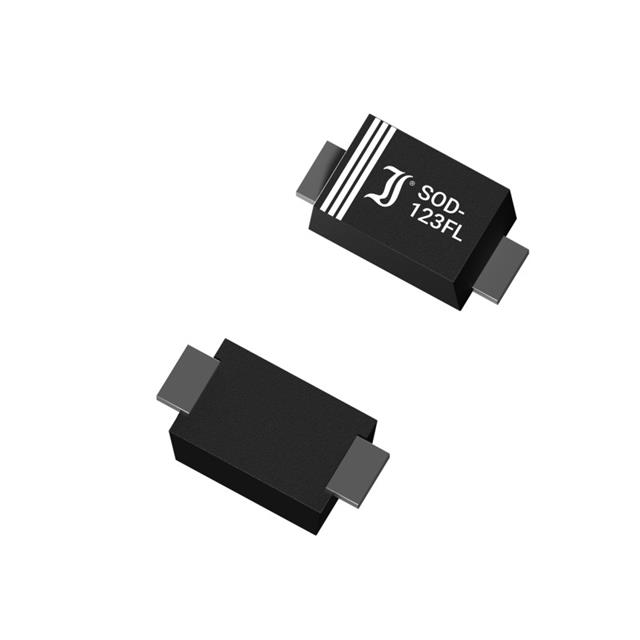

SOD-123FL

Packaging :

Tape and Reel

Peak Non-Repetitive Surge Current (A) :

25

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

JESD-30 Code :

R-PDSO-F2

Type :

Switching Diode

Pin Count :

2
