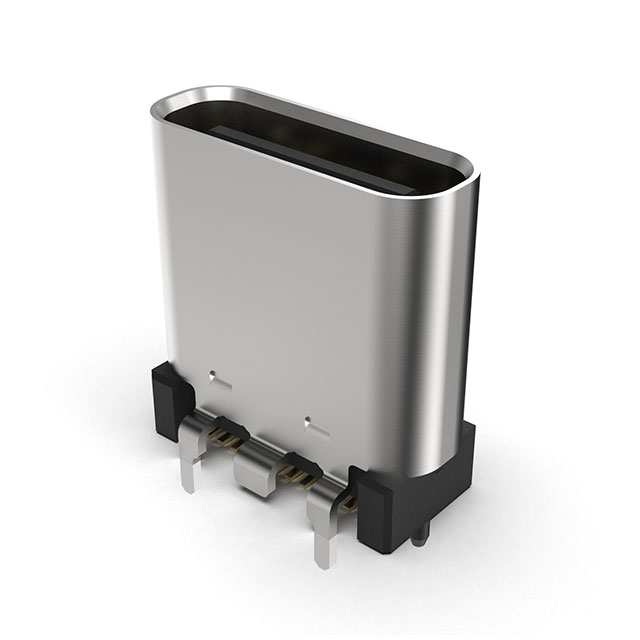

USB4115-03-C
Or copy the link below:
- Mfr.Part #
- USB4115-03-C
- Manufacturer
- GCT
- Package / Case
- Datasheet
- Download
- Description
- CONN USB3.1 TYPE-C VERT SOCKET
- Stock
- 1
- In Stock ：
- 1
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- GCT
- Product Category :
- USB, DVI, HDMI Connector Assemblies
- Number of Ports :
- 1
- Base Product Number :
- USB4115
- Termination Style :
- SMD/SMT
- Features :
- Board Guide, Solder Retention Tab
- Type :
- Low Profile Vertical PCB Mount
- Contact Plating :
- Gold Plated Contacts
- Contact Material :
- COPPER ALLOY
- Mounting Type :
- Surface Mount, Through Hole
- Connector Type :
- USB-C (USB TYPE-C)
- Product Category :
- USB Connectors
- Ingress Protection :
- -
- Current Rating :
- 5 A
- Manufacturer :
- Global Connector Technology (GCT)
- Shielding :
- Shielded
- Material Flammability Rating :
- UL94 V-0
- RoHS :
- Details
- Standard :
- USB 3.2 Gen 2
- Voltage Rating :
- 20 VDC
- IP Rating :
- -
- Packaging :
- Cut Tape
- Specifications :
- USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
- Insulation Resistance :
- 100 MOhms
- Mounting Style :
- SMD/SMT
- Termination :
- Solder
- Package :
- Cut Tape (CT)
- Shell Plating :
- Nickel
- Operating Temperature :
- -25°C ~ 85°C
- Flammability Rating :
- UL 94 V-0
- Product Status :
- Active
- Gender :
- Receptacle
- Shell/Shielding Material :
- Steel (SUS304)
- Mating Cycles :
- 10000
- Subcategory :
- USB Connectors
- Mounting Feature :
- Vertical
- Orientation :
- Vertical
- Insulation Color :
- Black
- Mounting Angle :
- Vertical
- Maximum Operating Temperature :
- + 85 C
- Current Rating (Amps) :
- 0.25A, 1.25A, 5A, 6.25A
- Product :
- USB Type C Connectors
- Number of Contacts :
- 24
- Product Type :
- USB Connectors
- Color :
- Black
- Series :
- USB4115
- Contact Finish :
- Gold
- Brand :
- GCT
- Voltage - Rated :
- 20VDC
- Minimum Operating Temperature :
- - 25 C
- Datasheets
- USB4115-03-C
USB4115-03-C Documents
USB4115-03-C datasheet pdf and USB, DVI, HDMI Connectors product details from GCT stock available at Xinshop
