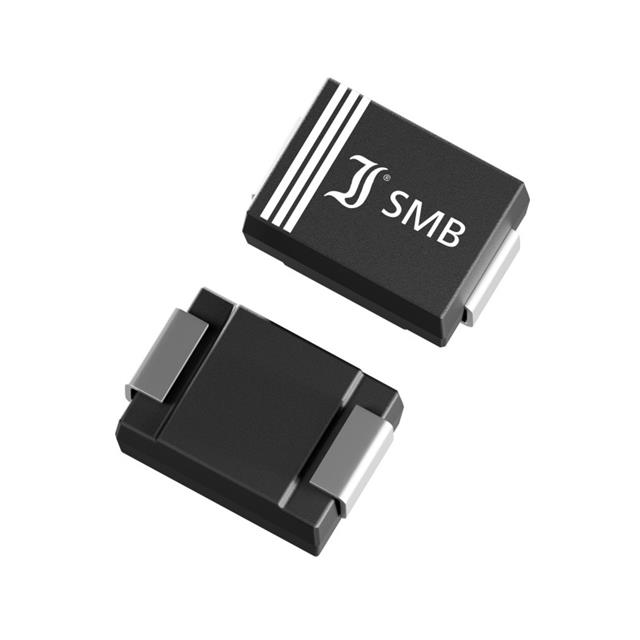

US2G

Manufacturer :

Diotec Semiconductor

Product Category :

Diodes - Rectifiers - Single

Number of Phases :

1

Number of Terminations :

2

Mounting Type :

Surface Mount

Reverse Current-Max :

5μA

Reach Compliance Code :

not_compliant

RoHS Status :

ROHS3 Compliant

Average Rectified Current :

1.5A

Diode Element Material :

SILICON

Element Configuration :

Single

Number of Elements :

1

Min Operating Temperature :

-55°C

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Weight :

106mg

JESD-609 Code :

e3

Peak Reflow Temperature (Cel) :

260

Diode Type :

Standard

Series :

Automotive, AEC-Q101

Max Forward Surge Current (Ifsm) :

50A

Published :

2016

Lifecycle Status :

ACTIVE (Last Updated: 5 days ago)

Terminal Finish :

Tin (Sn)

Max Reverse Voltage (DC) :

400V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Capacitance @ Vr, F :

50pF @ 4V 1MHz

HTS Code :

8541.10.00.80

Terminal Position :

Dual

Mount :

Surface Mount

Factory Lead Time :

10 Weeks

Packaging :

Tape and Reel (TR)

Current - Reverse Leakage @ Vr :

5µA @ 400V

Pbfree Code :

yes

Application :

SUPER FAST RECOVERY

Package / Case :

DO-214AC, SMA

Reverse Recovery Time :

50 ns

ECCN Code :

EAR99

Terminal Form :

C BEND

JESD-30 Code :

R-PDSO-C2

Max Operating Temperature :

150°C

Voltage - Forward (Vf) (Max) @ If :

1.3V @ 1.5A

Operating Temperature - Junction :

-55°C~150°C

Max Repetitive Reverse Voltage (Vrrm) :

400V
