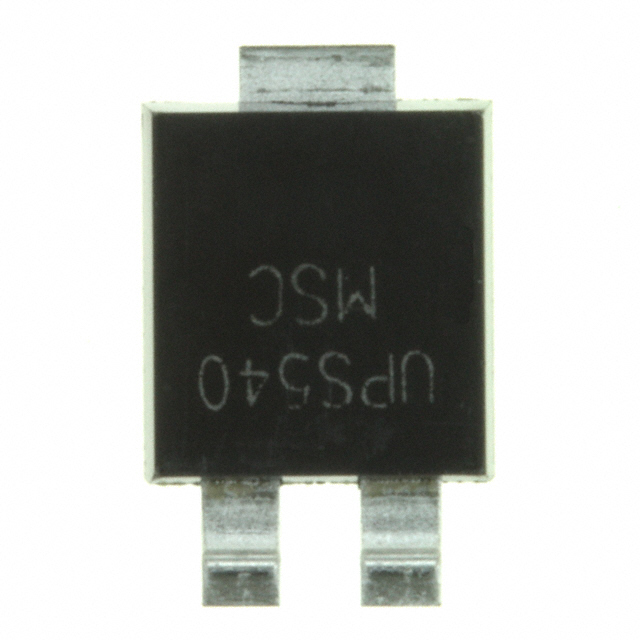

UPS540E3/TR13

Manufacturer :

Microchip Technology

Product Category :

Diodes - Rectifiers - Single

Forward Current :

5A

JESD-609 Code :

e3

Current Rating :

5A

HTS Code :

8541.10.00.80

Mounting Type :

Surface Mount

Peak Non-Repetitive Surge Current :

100A

Output Current :

5A

Pbfree Code :

yes

Terminal Finish :

Matte Tin (Sn) - annealed

Number of Elements :

1

Voltage - Forward (Vf) (Max) @ If :

540mV @ 5A

Packaging :

Tape and Reel (TR)

Number of Pins :

3

Published :

1997

Factory Lead Time :

19 Weeks

ECCN Code :

EAR99

Terminal Form :

Gull wing

Current - Reverse Leakage @ Vr :

500μA @ 40V

Element Configuration :

Common Anode

Forward Voltage :

540mV

Application :

EFFICIENCY

Terminal Position :

Single

Capacitance :

250pF

Average Rectified Current :

5A

Max Reverse Voltage (DC) :

40V

Operating Temperature - Junction :

-55°C~125°C

Capacitance @ Vr, F :

250pF @ 4V 1MHz

Peak Reverse Current :

500μA

Diode Element Material :

SILICON

Pin Count :

2

Radiation Hardening :

No

Number of Terminations :

2

Package / Case :

Powermite®3

Voltage - Rated DC :

40V

Number of Phases :

1

Case Connection :

CATHODE

Lifecycle Status :

IN PRODUCTION (Last Updated: 1 month ago)

Lead Free :

Lead Free

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Diode Type :

Schottky

Min Operating Temperature :

-55°C

RoHS Status :

RoHS Compliant

Polarity :

Standard

Mount :

Surface Mount

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Max Repetitive Reverse Voltage (Vrrm) :

40V

Base Part Number :

UPS540

Max Operating Temperature :

125°C

JESD-30 Code :

R-PSSO-G2
