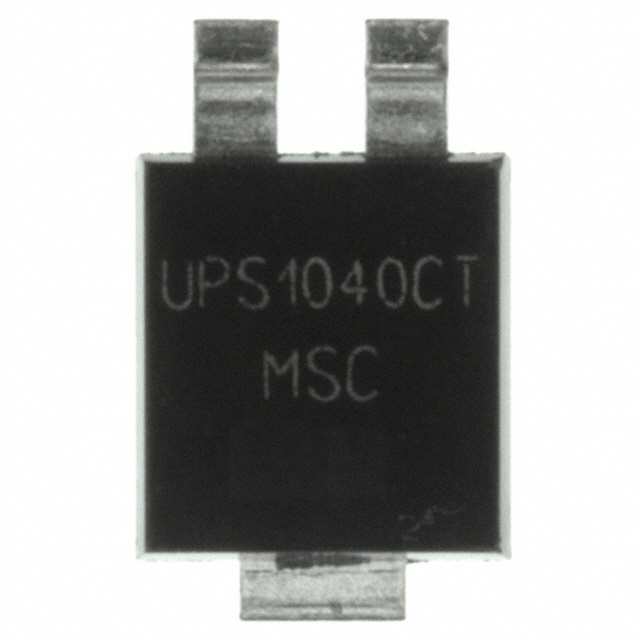

UPS1040CTE3

Manufacturer :

Microsemi

Product Category :

Diodes - Rectifiers - Arrays

JESD-30 Code :

R-PSSO-G2

RoHS Status :

RoHS Compliant

Peak Non-Repetitive Surge Current :

150A

JESD-609 Code :

e3

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Diode Configuration :

1 Pair Common Cathode

Base Part Number :

UPS1040CT

Forward Voltage :

570mV

Number of Phases :

1

Pin Count :

2

ECCN Code :

EAR99

Packaging :

Tape and Reel (TR)

Diode Type :

Schottky

Max Operating Temperature :

125°C

Terminal Finish :

MATTE TIN

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Elements :

2

Pbfree Code :

yes

Peak Reflow Temperature (Cel) :

260

Qualification Status :

Not Qualified

Time@Peak Reflow Temperature-Max (s) :

40

Package / Case :

Powermite®3

Mounting Type :

Surface Mount

Number of Pins :

3

Max Reverse Voltage (DC) :

40V

Application :

EFFICIENCY

Lifecycle Status :

Obsolete (Last Updated: 2 weeks ago)

Terminal Form :

Gull wing

Current - Reverse Leakage @ Vr :

150μA @ 35V

Min Operating Temperature :

-55°C

Voltage - Forward (Vf) (Max) @ If :

570mV @ 10A

Mount :

Surface Mount

HTS Code :

8541.10.00.80

Published :

1997

Diode Element Material :

SILICON

Average Rectified Current :

10A

Operating Temperature - Junction :

-55°C~125°C

Number of Terminations :

2

Element Configuration :

Common Cathode

Terminal Position :

Single
