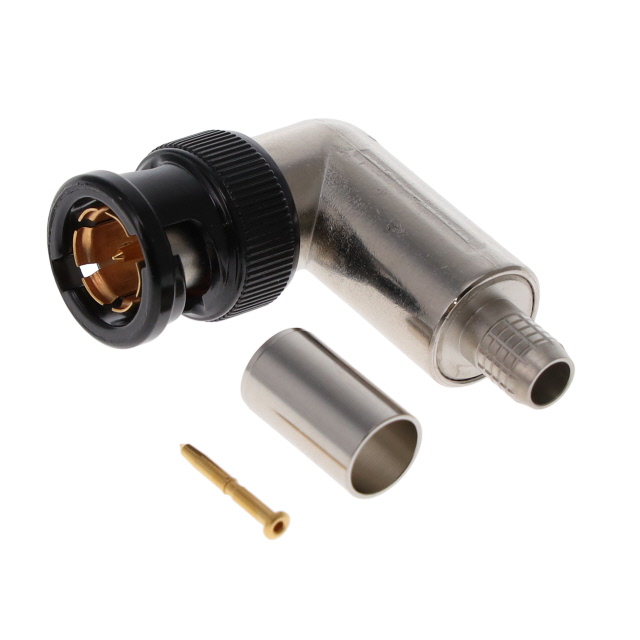

UPLR2000-D2
Or copy the link below:
- Mfr.Part #
- UPLR2000-D2
- Manufacturer
- Cinch Connectivity Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN BNC PLUG R/A 75 OHM CRIMP
- Stock
- 41,064
- In Stock ：
- 41,064
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Cinch Connectivity Solutions
- Product Category :
- Coaxial Connector (RF) Assemblies
- Contact Plating :
- Gold
- Shield Termination :
- Crimp
- Body Plating :
- Nickel
- Orientation :
- RIGHT ANGLE
- Max Operating Temperature :
- 85°C
- Min Operating Temperature :
- -40°C
- Dielectric Material :
- Polytetrafluoroethylene (PTFE)
- Packaging :
- Bulk
- Includes :
- 3 pcs - 1 Connector, 1 Contact, 1 Sleeve
- Impedance :
- 75Ohm
- Cable Group :
- Belden 1505A
- Mount :
- Cable, Free Hanging
- Center Contact Material :
- Brass
- Operating Temperature :
- -40°C~85°C
- Center Contact Plating :
- Gold
- Series :
- UPL2000
- Frequency (Max) :
- 6GHz
- Factory Lead Time :
- 9 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Connector Style :
- BNC
- Body Finish :
- Nickel
- RoHS Status :
- RoHS Compliant
- Number of Ports :
- 1
- Contact Material :
- Brass
- Mounting Type :
- Free Hanging (In-Line), Right Angle
- Connector Type :
- Plug, Male Pin
- Contact Termination :
- Crimp
- Housing Color :
- Black
- Voltage - Rated :
- 500V
- Mating Cycles :
- 500
- Radiation Hardening :
- No
- Frequency :
- 4GHz
- Body Material :
- Brass
- Fastening Type :
- Bayonet Lock
- Termination :
- Crimp
- Insertion Loss :
- 0.2dB
- Datasheets
- UPLR2000-D2
Plug, Male Pin Bayonet Lock 75Ohm Bulk BNC Crimp 1 Port Polytetrafluoroethylene (PTFE) -40°C~85°C
UPLR2000-D2 Overview
The packaging contains Plug, Male Pin.This device is mounted in the Free Hanging (In-Line), Right Angle position.It has been determined that a Bulk case is necessary to package the product.There is a product in the UPL2000 Series.When the temperature is below 85°C, it is best to use it.A minimum operating temperature of -40°C is required for this device.The device has 1 ports that can be used to manage a variety of tasks.Part Cable, Free Hanging is mounted to the part.As a result, the device runs at -40°C~85°C Operating Temperature.This device is extremely efficient when operated at a frequency of 4GHz.
UPLR2000-D2 Features
UPL2000 series
UPLR2000-D2 Applications
There are a lot of Cinch Connectivity Solutions Trompeter
UPLR2000-D2 Coaxial Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
