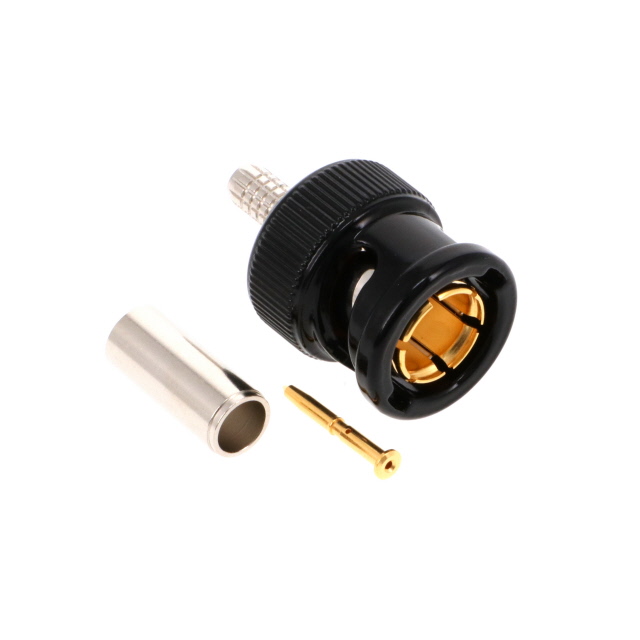

UPL2000-D1/B
Or copy the link below:
- Mfr.Part #
- UPL2000-D1/B
- Manufacturer
- Cinch Connectivity Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN BNC PLUG STR 75 OHM 1=50
- Stock
- 24
- In Stock ：
- 24
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Cinch Connectivity Solutions
- Product Category :
- Coaxial Connector (RF) Assemblies
- Factory Lead Time :
- 8 Weeks
- Radiation Hardening :
- No
- MIL Conformance :
- No
- IEC Conformance :
- No
- REACH SVHC :
- No SVHC
- Option :
- GENERAL PURPOSE
- Center Contact Plating :
- Gold
- Published :
- 2012
- Body Material :
- Brass
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Ports :
- 1
- Frequency :
- 4GHz
- JESD-609 Code :
- e4
- Dielectric Material :
- Polytetrafluoroethylene (PTFE)
- Impedance :
- 75Ohm
- Series :
- UPL2000
- ECCN Code :
- EAR99
- RoHS Status :
- RoHS Compliant
- Mating Cycles :
- 500
- Housing Color :
- Black
- Mounting Type :
- Free Hanging (In-Line)
- Filter Feature :
- No
- Orientation :
- Straight
- Cable Group :
- Comm/Scope 7538
- Contact Termination :
- Crimp
- Mount :
- Cable, Free Hanging
- Voltage - Rated :
- 500V
- Operating Temperature :
- -40°C~85°C
- Body Finish :
- Nickel
- VSWR :
- 1.2
- Insertion Loss :
- 0.2dB
- Insulation Material :
- POLYTETRAFLUORO ETHYLENE
- Connector Style :
- BNC
- Fastening Type :
- Bayonet Lock
- Includes :
- 3 pcs - 1 Connector, 1 Contact, 1 Sleeve
- Connector Type :
- Plug, Male Pin
- Packaging :
- Bulk
- DIN Conformance :
- No
- Datasheets
- UPL2000-D1/B
UPL2000-D1/B Documents
Plug, Male Pin Bayonet Lock 75Ohm Bulk BNC Crimp 1 Port Polytetrafluoroethylene (PTFE) -40°C~85°C
UPL2000-D1/B Overview
A Plug, Male Pin package is included with it.Free Hanging (In-Line) indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the UPL2000 Series.With 1 ports, it is capable of managing a wide range of tasks.By Cable, Free Hanging, the part is mounted.Operating temperature is set to -40°C~85°C.An effective performance can be achieved at a frequency of 4GHz.
UPL2000-D1/B Features
UPL2000 series
UPL2000-D1/B Applications
There are a lot of Cinch Connectivity Solutions Trompeter
UPL2000-D1/B Coaxial Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
