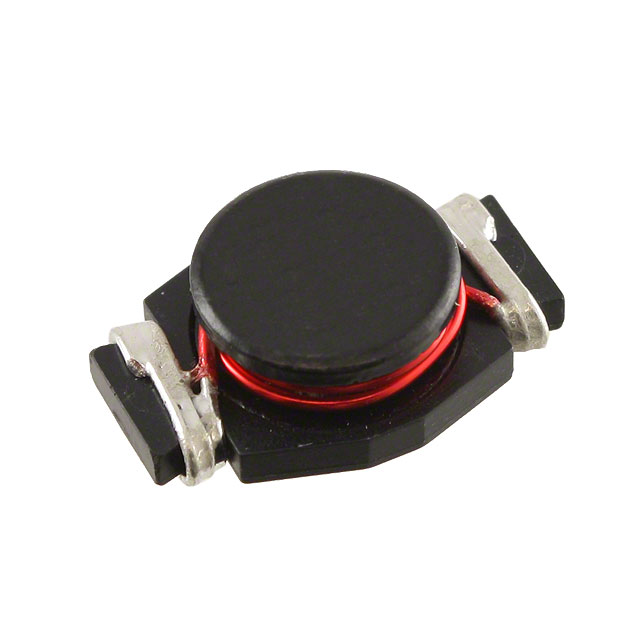

UP4B-100-R

Manufacturer :

Eaton-Electronics Division

Product Category :

Fixed Inductors

Test Frequency :

100kHz

Series :

UNI-PAC™

Number of Pins :

2

Tolerance :

±20%

Factory Lead Time :

14 Weeks

Military Standard :

Not

Current - Saturation :

11.5A

Length :

22.1mm

Mount :

Surface Mount

Package / Case :

Nonstandard

Inductance :

10μH

Inductance Frequency - Test :

100kHz

Width :

14.986mm

Max DC Current :

6.8A

RMS Current (Irms) :

6.8A

Type :

Wirewound

DC Current :

6.8A

Operating Temperature :

-40°C~85°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

REACH SVHC :

No SVHC

Current Rating (Amps) :

6.8A

Shielding :

Unshielded

Packaging :

Tape and Reel (TR)

Termination :

SMD/SMT

Composition :

Wirewound

Max Operating Temperature :

85°C

Height Seated (Max) :

0.310 7.87mm

Weight :

6.803886g

Depth :

15mm

Current Rating :

6.8A

Inductance Tolerance :

20%

RoHS Status :

RoHS Compliant

Size / Dimension :

0.870Lx0.591W 22.10mmx15.00mm

Min Operating Temperature :

-40°C

Radiation Hardening :

No

Material - Core :

Ferrite

Height :

7.87mm

DC Resistance (DCR) :

15mOhm Max

Mounting Type :

Surface Mount

Lead Free :

Lead Free

Published :

2007
