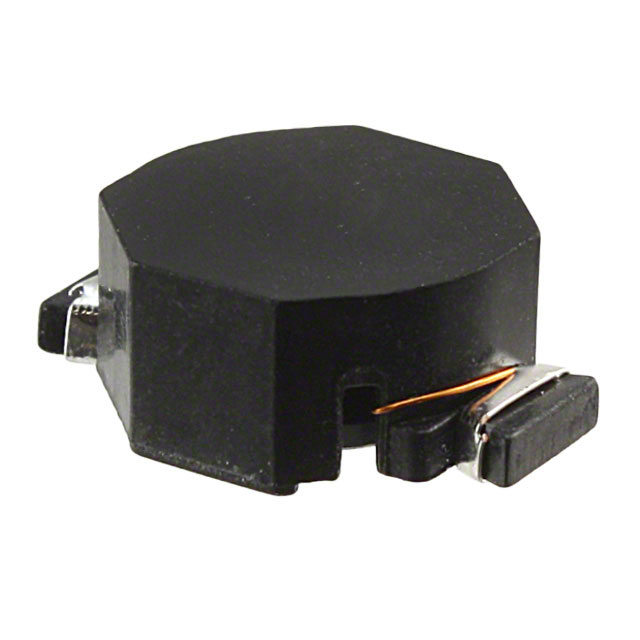

UP2B-220

Manufacturer :

Eaton-Electronics Division

Product Category :

Fixed Inductors

Type :

Wirewound

Weight :

2.721554g

Shielding :

Unshielded

DC Resistance (DCR) :

61.7mOhm Max

Military Standard :

Not

RMS Current (Irms) :

2.8A

Operating Temperature :

-40°C~85°C

Mount :

Surface Mount

Max Operating Temperature :

85°C

Tolerance :

±20%

Inductance :

22μH

Composition :

Wirewound

RoHS Status :

RoHS Compliant

Depth :

10.41mm

REACH SVHC :

No SVHC

Radiation Hardening :

No

Size / Dimension :

0.550Lx0.410W 13.97mmx10.41mm

Max DC Current :

2.8A

Min Operating Temperature :

-40°C

Material - Core :

Ferrite

Test Frequency :

100kHz

Inductance Tolerance :

20%

Termination :

SMD/SMT

Number of Pins :

2

Inductance Frequency - Test :

100kHz

Factory Lead Time :

14 Weeks

Mounting Type :

Surface Mount

DC Current :

2.8A

Width :

10.414mm

Length :

13.97mm

Current - Saturation :

2A

Package / Case :

Nonstandard

Published :

2007

Series :

UNI-PAC™

Lead Free :

Lead Free

Current Rating (Amps) :

2.8A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Height :

6mm

Current Rating :

2.8A

Packaging :

Tape and Reel (TR)

Height Seated (Max) :

0.236 6.00mm
