UC2544DW
Or copy the link below:
- Mfr.Part #
- UC2544DW
- Manufacturer
- Unitrode
- Package / Case
- 18-SOIC (0.295, 7.50mm Width)
- Datasheet
- Download
- Description
- UC2544 POWER-SUPPLY SUPERVISORY
- Stock
- 10,143
- In Stock ：
- 10,143
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Unitrode
- Product Category :
- Supervisors
- Voltage - Input :
- 4.5V~40V
- Mounting Type :
- Surface Mount
- Max Power Dissipation :
- 1W
- Analog IC - Other Type :
- POWER SUPPLY SUPPORT CIRCUIT
- RoHS Status :
- ROHS3 Compliant
- Terminal Form :
- Gull wing
- Number of Functions :
- 1
- Height :
- 2.65mm
- Lead Free :
- Lead Free
- Number of Terminations :
- 18
- Max Supply Voltage :
- 40V
- Pin Count :
- 18
- Package / Case :
- 18-SOIC (0.295, 7.50mm Width)
- Max Supply Current :
- 10mA
- Width :
- 7.5mm
- Base Part Number :
- UC2544
- Applications :
- Power Supply, Supervisor
- Threshold Voltage :
- 2.5
- Operating Temperature :
- -25°C~85°C
- Length :
- 11.5mm
- Min Reset Threshold Voltage :
- 2.45V
- Operating Supply Current :
- 7mA
- Number of Channels :
- 1
- Mount :
- Surface Mount
- Peak Reflow Temperature (Cel) :
- 260
- Watchdog Timer :
- No
- Thickness :
- 2.35mm
- Pbfree Code :
- yes
- Number of Voltages Monitored :
- 1
- Terminal Finish :
- Nickel/Palladium/Gold (Ni/Pd/Au)
- Supply Voltage :
- 10V
- Max Reset Threshold Voltage :
- 2.55V
- Number of Pins :
- 18
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Adjustable Threshold :
- No
- ECCN Code :
- EAR99
- Quiescent Current :
- 7mA
- Moisture Sensitivity Level (MSL) :
- 2 (1 Year)
- JESD-609 Code :
- e4
- Power Dissipation :
- 1W
- Min Supply Voltage :
- 4.5V
- Packaging :
- Tube
- Terminal Position :
- Dual
- Datasheets
- UC2544DW

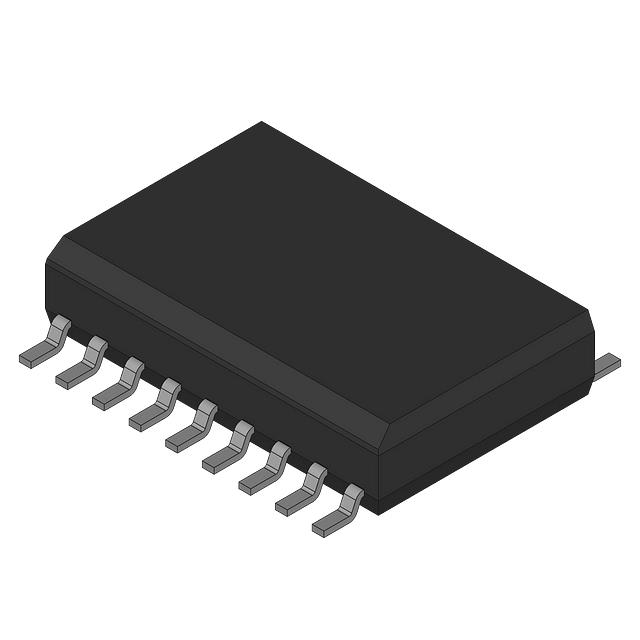

[Supervisors Unitrode UC2544DW] Overview
The UC2544DW from Unitrode is a highly reliable integrated circuit designed to provide supervisory functions for power supply systems. It ensures the stable operation of power supplies by monitoring various parameters and providing necessary feedback to the system. This versatile component is an essential part of any power supply design, offering robust performance and precise monitoring capabilities.
UC2544DW Features
- Overvoltage Protection: Safeguards the system by detecting and responding to overvoltage conditions, preventing damage to connected devices.
- Undervoltage Lockout: Ensures proper system operation by monitoring voltage levels and preventing operation below specified thresholds.
- Power Fail Detection: Detects power failures or disruptions, allowing the system to initiate proper shutdown procedures or switch to backup power sources.
- Adjustable Reset Timer: Provides flexibility in setting the reset time delay according to specific system requirements.
- Wide Operating Voltage Range: Compatible with a wide range of power supply voltages, enhancing versatility and applicability.
UC2544DW Applications
- Telecommunication Equipment: The UC2544DW is commonly used in telecommunication systems to ensure continuous power supply operation. It monitors voltage levels and protects against overvoltage conditions, safeguarding sensitive telecom equipment from damage.
- Industrial Control Systems: In industrial environments, the UC2544DW plays a critical role in maintaining the stability of power supplies for various control systems. It detects power failures and initiates proper shutdown procedures to prevent data loss or equipment damage.
- Medical Devices: Medical equipment relies on stable power supplies for consistent and safe operation. The UC2544DW provides essential supervisory functions, ensuring that medical devices operate reliably and safely under all conditions.
