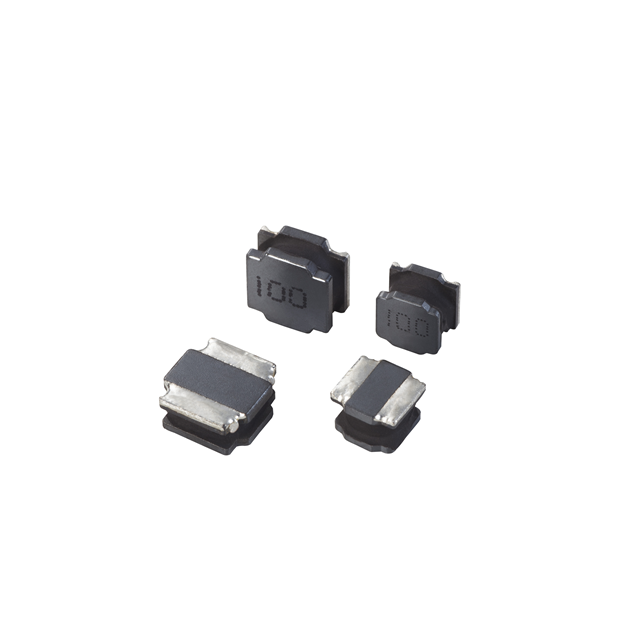

TYA4020100M-10

Manufacturer :

Laird - Performance Materials

Product Category :

Fixed Inductors

Package :

Digi-Reel?

Termination :

Standard

Height - Seated (Max) :

0.083" (2.10mm)

Ratings :

AEC-Q200

Frequency - Self Resonant :

-

Length :

4 mm

RMS Current (Irms) :

2 A

Diameter :

-

Core Type :

Wirewound

Series :

TYA4020

Q @ Freq :

-

Material - Core :

Metal

Maximum Operating Temperature :

+ 125 C

Product Status :

Active

Product :

Power Inductors

Manufacturer :

Laird Performance Materials

Self Resonant Frequency :

-

Height :

2.1 mm

Type :

Drum Core, Wirewound

Shielding :

Shielded

Supplier Device Package :

-

Current Rating (Amps) :

2 A

Product Category :

Power Inductors - SMD

Tolerance :

±20%

Product Type :

Fixed Inductors

Package / Case :

Nonstandard

Brand :

Laird Performance Materials

Product Length :

4 mm

DC Resistance (DCR) :

220mOhm Max

Core Material :

Metal Alloy

Size / Dimension :

0.157" L x 0.157" W (4.00mm x 4.00mm)

Inductance Tolerance :

± 20%

Application :

High Current

Mounting Style :

PCB Mount

Width :

4 mm

Inductance Frequency - Test :

1 MHz

Current - Saturation (Isat) :

2.8A

Packaging :

MouseReel

Termination Style :

SMD/SMT

Mounting Type :

Surface Mount

Features :

-

Saturation Current :

2.8 A

RoHS :

Details

Minimum Operating Temperature :

- 40 C

Product Width :

4 mm

Operating Temperature :

-40°C ~ 125°C

Subcategory :

Inductors, Chokes and Coils

Inductance :

10 µH

Test Frequency :

1 MHz
