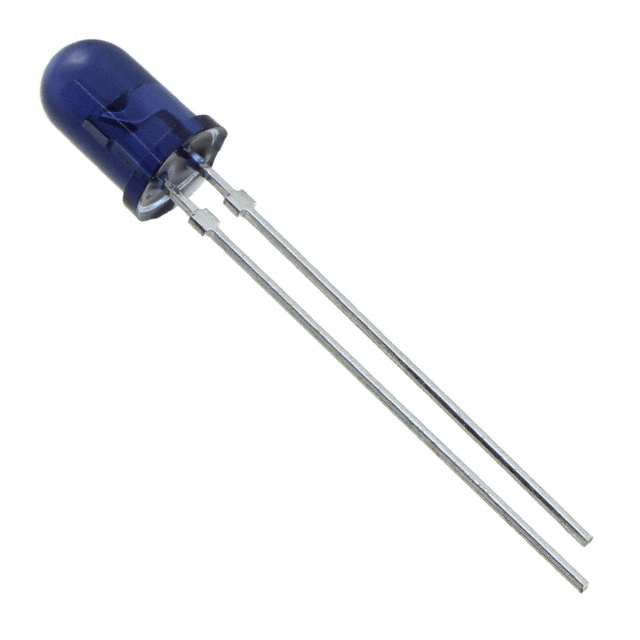

TSUS5202

Manufacturer :

Vishay

Product Category :

Reverse Voltage :

5V

Min Operating Temperature :

-40°C

Mounting Type :

Through Hole

Type :

Infrared (IR)

Forward Voltage :

1.7V

Lead Pitch :

2.54mm

Packaging :

Bulk

Published :

2005

Orientation :

Top View

Current - DC Forward (If) (Max) :

150mA

Viewing Angle :

30°

Operating Temperature :

-40°C~85°C TA

Factory Lead Time :

17 Weeks

Max Operating Temperature :

85°C

Radiation Hardening :

No

Voltage - Forward (Vf) (Typ) :

2.2V

Rise Time :

800ns

Number of Elements :

1

Package / Case :

Radial

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Lens Style :

Circular, Diffused, Round

Power Dissipation :

210mW

Peak Wavelength :

950 nm

Fall Time (Typ) :

800 ns

Power Rating :

210mW

Wavelength :

950nm

Mount :

Through Hole

Length :

5.8mm

RoHS Status :

ROHS3 Compliant

Number of LEDs :

1

REACH SVHC :

Unknown

Number of Pins :

2

Test Current :

100mA

Radiant Intensity (Ie) Min @ If :

20mW/sr @ 100mA

Voltage - Rated DC :

1.3V

Depth :

5.8mm

Forward Current :

150mA
