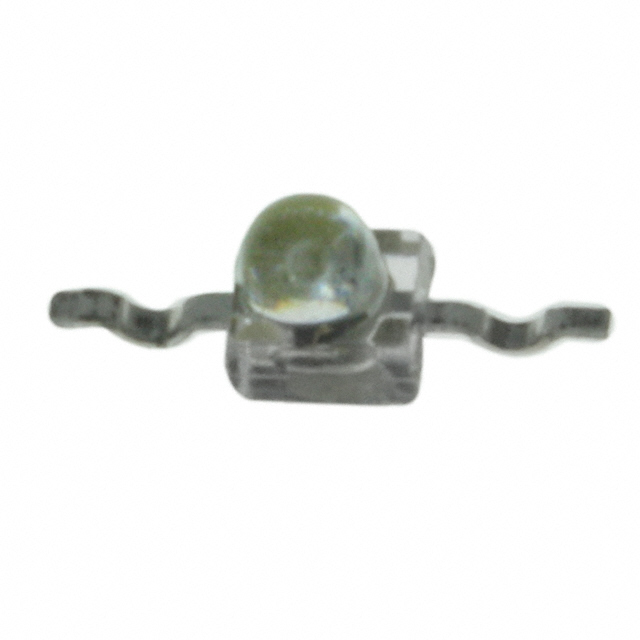

TSMF1030

Manufacturer :

Vishay

Product Category :

RoHS Status :

ROHS3 Compliant

Published :

2011

Min Operating Temperature :

-40°C

Length :

2.5mm

Mounting Type :

Surface Mount

Current - DC Forward (If) (Max) :

100mA

Number of LEDs :

1

Rise Time :

30ns

Orientation :

Top View

Voltage - Forward (Vf) (Typ) :

1.3V

Max Operating Temperature :

85°C

Depth :

2mm

Peak Wavelength :

870 nm

Color :

Clear

Voltage - Rated DC :

2.4V

Width :

2mm

Number of Pins :

2

Lens Style :

Circular, Colorless, Diffused

Packaging :

Tape and Reel (TR)

Radiant Intensity (Ie) Min @ If :

2.5mW/sr @ 20mA

Mount :

Surface Mount

Factory Lead Time :

14 Weeks

Forward Voltage :

1.3V

Power Rating :

190mW

Power Dissipation :

180mW

Type :

Infrared (IR)

Viewing Angle :

34°

Number of Elements :

1

Reverse Voltage :

5V

Operating Temperature :

-40°C~85°C TA

Height :

2.7mm

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Package / Case :

2-SMD, Yoke Bend

Test Current :

100mA

Forward Current :

20mA

Reverse Voltage (DC) :

5V

Wavelength :

890nm
