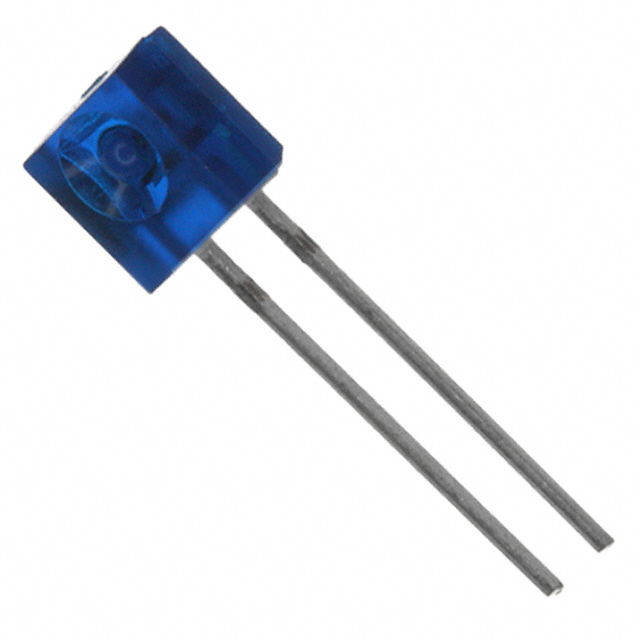

TSKS5400S

Manufacturer :

Vishay

Product Category :

Mounting Type :

Through Hole

Max Operating Temperature :

85°C

Viewing Angle :

60°

Number of Elements :

1

RoHS Status :

ROHS3 Compliant

REACH SVHC :

Unknown

Depth :

2.65mm

Test Current :

100mA

Current - DC Forward (If) (Max) :

100mA

Factory Lead Time :

20 Weeks

Reverse Voltage :

6V

Package / Case :

Radial, Side View

Forward Voltage :

1.3V

Type :

Infrared (IR)

Number of Pins :

2

Number of LEDs :

1

Orientation :

Side View

Lead Free :

Lead Free

Radiant Intensity (Ie) Min @ If :

2mW/sr @ 100mA

Rise Time :

800ns

Packaging :

Bulk

Forward Current :

100mA

Power Dissipation :

170mW

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Fall Time (Typ) :

450 ns

Voltage - Forward (Vf) (Typ) :

1.3V

Radiation Hardening :

No

Mount :

Through Hole

Wavelength :

950nm

Operating Temperature :

-25°C~85°C TA

Lens Style :

Circular, Diffused, Round

Length :

4.9mm

Min Operating Temperature :

-25°C

Power Rating :

170mW

Peak Wavelength :

950 nm
