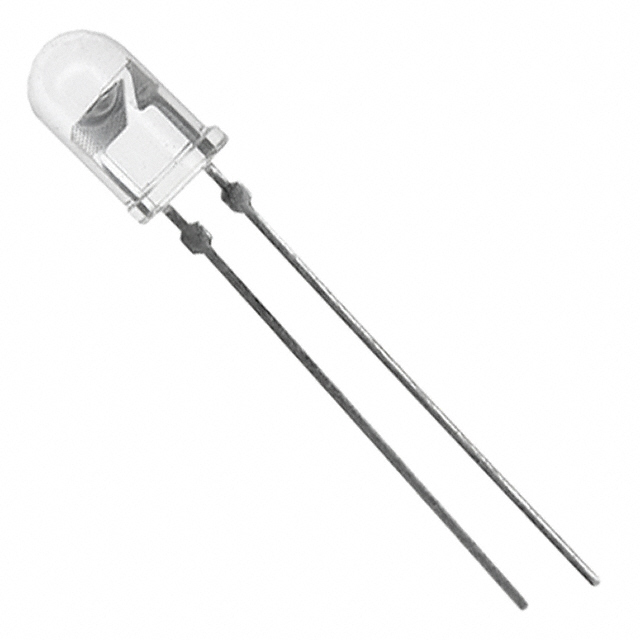

TSFF5410

Manufacturer :

Vishay

Product Category :

Reverse Voltage (DC) :

5V

Number of LEDs :

1

Mounting Type :

Through Hole

Forward Current :

100mA

Radiant Intensity (Ie) Min @ If :

45mW/sr @ 100mA

Max Operating Temperature :

85°C

Current - DC Forward (If) (Max) :

100mA

Package / Case :

Radial, 5mm Dia (T 1 3/4)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Type :

Infrared (IR)

Rise Time :

15ns

Voltage - Forward (Vf) (Typ) :

1.5V

Operating Temperature :

-40°C~85°C TA

Number of Pins :

2

Factory Lead Time :

10 Weeks

Wavelength :

870nm

Orientation :

Top View

Min Operating Temperature :

-40°C

Mount :

Through Hole

Forward Voltage :

1.5V

Height :

8.7mm

Peak Wavelength :

870 nm

Power Dissipation :

180mW

Reverse Voltage :

5V

Number of Elements :

1

Viewing Angle :

44°

Lens Style :

Circular, Colorless, Diffused, Round

Test Current :

100mA

Published :

2007

Fall Time (Typ) :

15 ns

Width :

5.8mm

Length :

5.8mm

Packaging :

Bulk

Radiation Hardening :

No

Power Rating :

250mW

RoHS Status :

ROHS3 Compliant

Lead Free :

Lead Free

REACH SVHC :

Unknown

Depth :

5.8mm
