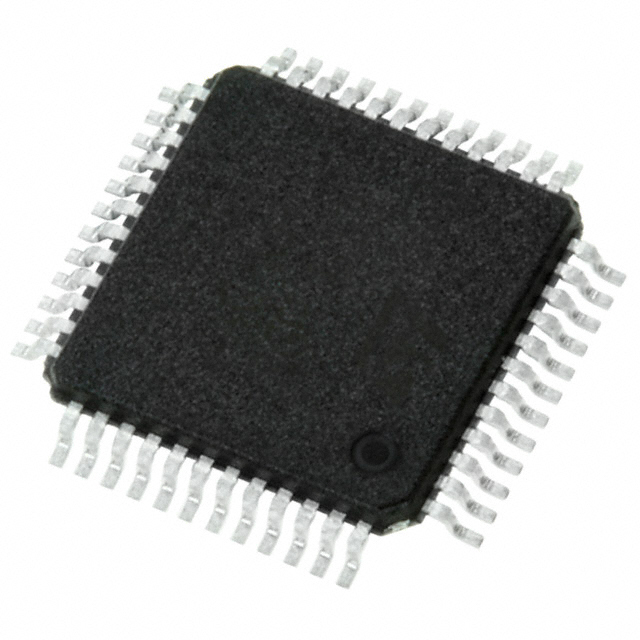

TSA1204IFT

Manufacturer :

STMicroelectronics

Product Category :

Analog to Digital Converters (ADC)

Voltage - Supply, Analog :

2.25V~2.7V

Resolution :

1.5 B

Supply Voltage :

2.5V

Max Power Dissipation :

155mW

RoHS Status :

ROHS3 Compliant

Voltage - Supply, Digital :

2.25V~2.7V

Number of Converters :

2

Number of Terminations :

48

Power Consumption :

271mW

Supply Type :

Analog, Digital

Data Interface :

Parallel

Mounting Type :

Surface Mount

Feature :

Simultaneous Sampling

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Input Type :

Differential

Linearity Error-Max (EL) :

0.0439%

Package / Case :

48-TQFP

Width :

7mm

Conversion Rate :

40 Msps

Number of Pins :

48

Number of A/D Converters :

1

Converter Type :

ADC, PROPRIETARY METHOD

Terminal Finish :

TIN LEAD

Sampling Rate (Per Second) :

20m

Pbfree Code :

No

ECCN Code :

EAR99

Reference Type :

External, Internal

Pin Count :

48

Lead Free :

Lead Free

Terminal Form :

Gull wing

Radiation Hardening :

No

Number of Functions :

1

Ratio - S/H:ADC :

1:1

Terminal Position :

QUAD

Operating Temperature :

-40°C~85°C

Number of Bits :

12

Number of Analog In Channels :

2

Mount :

Surface Mount

Terminal Pitch :

0.5mm

Base Part Number :

TSA1204

Configuration :

S/H-ADC

Sampling Rate :

20 Msps

Signal to Noise Ratio (SNR) :

66.1 dB

Sample and Hold / Track and Hold :

SAMPLE

Length :

7mm

Operating Supply Voltage :

3.3V

Output Bit Code :

BINARY

Packaging :

Tape and Reel (TR)

JESD-609 Code :

e0

Architecture :

Pipelined
