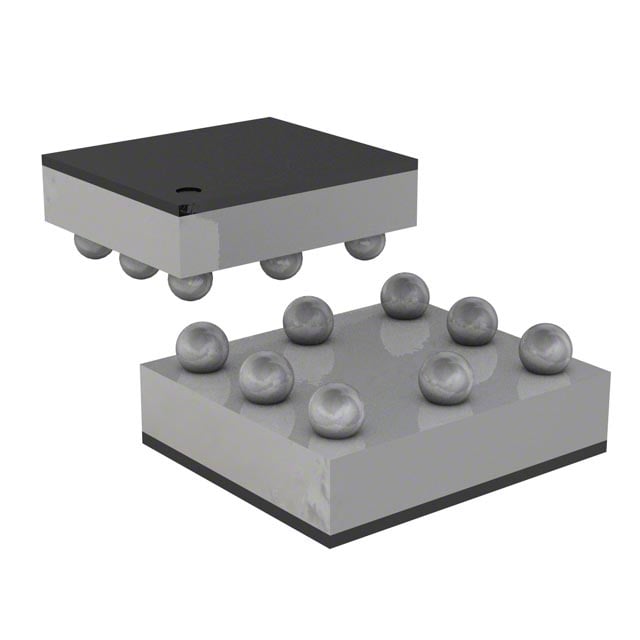

TS922EIJT

Manufacturer :

STMicroelectronics

Product Category :

Instrumentation, OP Amps, Buffer Amps

Current - Input Bias :

15nA

Number of Terminations :

8

Output Current :

80mA

Length :

1.6mm

Bias Current-Max (IIB) @25C :

0.1μA

Wideband :

No

Output Current per Channel :

80mA

Number of Elements :

2

Low-Offset :

No

Factory Lead Time :

24 Weeks

Gain Bandwidth Product :

4MHz

Unity Gain BW-Nom :

4000 kHz

Terminal Form :

Ball

Architecture :

VOLTAGE-FEEDBACK

Lifecycle Status :

ACTIVE (Last Updated: 7 months ago)

Micropower :

No

Operating Temperature :

-40°C~125°C

Operating Supply Current :

2mA

Frequency Compensation :

yes

Height Seated (Max) :

0.6mm

Number of Functions :

2

Programmable Power :

No

Pin Count :

8

Supply Voltage :

3V

Voltage Gain :

106.02dB

Terminal Pitch :

0.5mm

Slew Rate :

1.3V/µs

Packaging :

Tape and Reel (TR)

ECCN Code :

EAR99

Average Bias Current-Max (IIB) :

0.1μA

RoHS Status :

ROHS3 Compliant

Peak Reflow Temperature (Cel) :

250

Lead Free :

Lead Free

Supply Voltage Limit-Max :

14V

Power Supplies :

3/5V

Package / Case :

8-UFBGA, FCBGA

Time@Peak Reflow Temperature-Max (s) :

40

Voltage - Supply, Single/Dual (±) :

2.7V~12V

Amplifier Type :

GENERAL PURPOSE

Common Mode Rejection Ratio :

60 dB

Packing Method :

Tape and Reel

Power :

No

Low-Bias :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Output Type :

Rail-to-Rail

Terminal Position :

BOTTOM

Base Part Number :

TS922

Radiation Hardening :

No

Number of Pins :

8

Input Offset Voltage (Vos) :

1.5mV

Nominal Supply Current :

3mA

Mounting Type :

Surface Mount

Mount :

Surface Mount
