TS3DV20812RHHR

Manufacturer :

Texas Instruments

Product Category :

Video Processing

Peak Reflow Temperature (Cel) :

260

Operating Supply Current :

250μA

Height :

1mm

Length :

6mm

Supply Type :

Single

Number of Bits :

8

Factory Lead Time :

6 Weeks

Bandwidth :

1.1 GHz

Lifecycle Status :

ACTIVE (Last Updated: 5 days ago)

Turn On Delay Time :

14 ns

ECCN Code :

EAR99

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

On-state Resistance Match-Nom :

0.4Ohm

Base Part Number :

TS3DV20812

Resistance :

6Ohm

Packaging :

Tape and Reel (TR)

Power Supplies :

2.5/3.3V

Turn-Off Delay Time :

11 ns

Low Level Output Current :

128mA

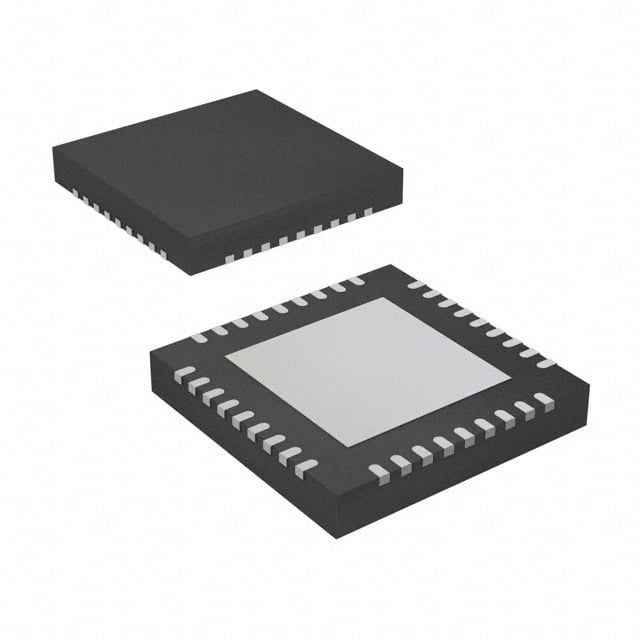

Package / Case :

36-VFQFN Exposed Pad

Thickness :

900μm

Mounting Type :

Surface Mount

RoHS Status :

ROHS3 Compliant

Normal Position :

NO/NC

Max Operating Temperature :

85°C

Number of Outputs :

16

Number of Terminations :

36

Applications :

DVI, HDMI Signal Switching

Data Rate :

2.2 Gbps

Max Supply Voltage :

3.6V

Supply Current-Max (Isup) :

0.5mA

Switching :

MAKE-BEFORE-BREAK

Min Operating Temperature :

-40°C

Number of Pins :

36

Switch-off Time-Max :

15ns

REACH SVHC :

No SVHC

Number of Channels :

11

Propagation Delay :

250 ps

Number of Functions :

4

Lead Free :

Lead Free

High Level Output Current :

128mA

Terminal Position :

QUAD

Type :

Video Switch

Temperature Grade :

Industrial

JESD-609 Code :

e4

Logic Function :

Demultiplexer, Multiplexer

Terminal Pitch :

0.5mm

Width :

6mm

Pin Count :

36

Qualification Status :

Not Qualified

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Supply Voltage :

2.5V

Min Supply Voltage :

2.25V

Nominal Supply Current :

250μA

Mount :

Surface Mount

Pbfree Code :

yes

Terminal Form :

NO LEAD

Contact Plating :

Gold
