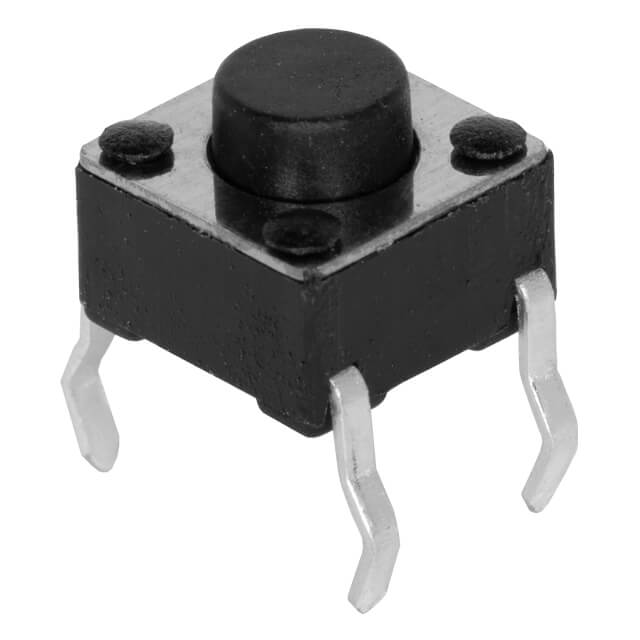

TS02-66-60-BK-260-LCR-D

Manufacturer :

CUI Devices

Product Category :

Maximum Operating Temperature :

+ 80 C

Actuator Type :

Standard

Height :

6 mm

Subcategory :

Switches

Package :

Bag

Contact Plating :

Silver

Power Rating :

-

Brand :

CUI Devices

Mechanical Life :

60,000 Cycles

Actuator Length, Right Angle :

-

Lamp Type :

-

Features :

-

Actuator Orientation :

Top Actuated

Actuator :

Stem

Base Product Number :

TS02-66

Contact Rating @ Voltage :

0.05A @ 12VDC

Series :

TS02

Actuator Material :

Polyamide (PA66), Nylon 6/6

Mounting Style :

Through Hole

Circuit :

SPST-NO

Actuator Style :

Button

Length :

6 mm

Color :

Black

IP Rating :

-

Termination Style :

PC Pin

Operating Force :

260gf

Illumination Type, Color :

-

Product Status :

Active

Illumination Voltage (Nominal) :

-

Current Rating :

50 mA

Outline :

6.00mm x 6.00mm

Mounting Type :

Through Hole

Switch Travel :

0.25mm

Product :

Tactile Switch

Actuator Height off PCB, Vertical :

6.00mm

Illumination Color :

-

Minimum Operating Temperature :

- 30 C

Operating Temperature :

-30°C ~ 80°C

Product Type :

Tactile Switches

Actuator Length :

6 mm

Type :

Tactile Switch

Illumination :

Non-Illuminated

Width :

6 mm

Ingress Protection :

-

Switch Function :

Off-Mom

Contact Form :

SPST

Product Category :

Tactile Switches

Manufacturer :

CUI Devices
