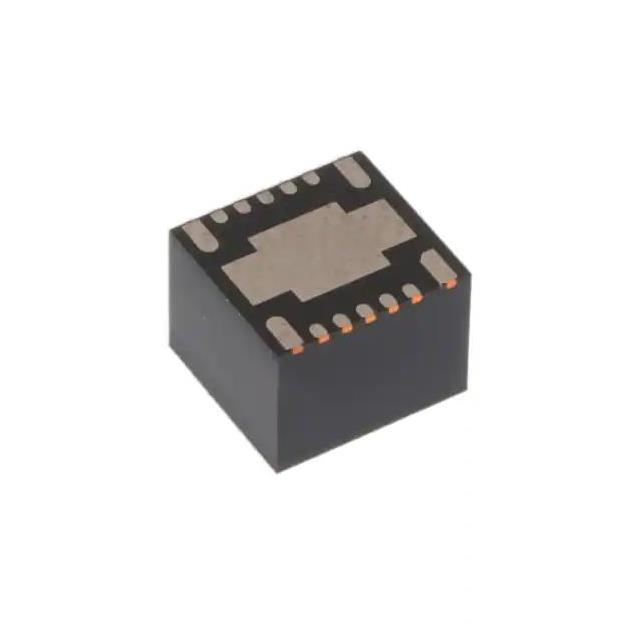

TPSM53604RDAR
Or copy the link below:
- Mfr.Part #
- TPSM53604RDAR
- Manufacturer
- FRESH DIGIT
- Package / Case
- 14-PowerBQFN Module
- Datasheet
- Download
- Description
- Non-Isolated PoL Module
- Stock
- 45,675
- In Stock ：
- 45,675
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- FRESH DIGIT
- Product Category :
- Type :
- Non-Isolated PoL Module
- Terminal Form :
- NO LEAD
- Number of Functions :
- 1
- Feature :
- Adjustable Output
- Voltage - Input (Max) :
- 36V
- Number of Outputs :
- 1
- RoHS Status :
- ROHS3 Compliant
- Moisture Sensitivity Level (MSL) :
- 3 (168 Hours)
- Current - Output (Max) :
- 4A
- Control Technique :
- PULSE WIDTH MODULATION
- Switcher Configuration :
- Buck
- Mounting Type :
- Surface Mount
- Applications :
- ITE (Commercial)
- Size / Dimension :
- 0.22Lx0.20W x 0.16 H 5.5mmx5.0mmx4.1mm
- Length :
- 5.5mm
- Input Voltage-Nom :
- 12V
- Base Part Number :
- TPSM53604
- JESD-609 Code :
- e4
- Terminal Position :
- UNSPECIFIED
- Width :
- 5mm
- Terminal Finish :
- Nickel/Palladium/Gold (Ni/Pd/Au)
- Number of Terminations :
- 15
- Control Features :
- Enable, Active High
- Voltage - Input (Min) :
- 3.8V
- Package / Case :
- 14-PowerBQFN Module
- Operating Temperature :
- -40°C~105°C
- Surface Mount :
- yes
- Pbfree Code :
- yes
- Voltage - Output 1 :
- 1V~7V
- Efficiency :
- 95%
- Factory Lead Time :
- 6 Weeks
- Datasheets
- TPSM53604RDAR
TPSM53604RDAR datasheet pdf and DC DC Converters product details from Texas Instruments stock available at
TPSM53604RDAR Description
TPSM53604RDAR is a module for a DC-DC step-down converter. It is a power supply solution with excellent performance, low power, compact size, and simple operation. The module is appropriate for a variety of applications because to its wide input voltage range of 4.5V to 40V. A built-in low-side MOSFET on the TPSM53604RDAR helps to cut down on the number of components and free up board space. The gadget also boasts a high efficiency of up to 96%, making it perfect for applications that require a lot of power. To ensure safe and dependable operation, the TPSM53604RDAR also has a number of protection features, including thermal shutdown, overvoltage protection, undervoltage lockout, and short-circuit protection. The Texas Instruments TPSM53604RDAR is a high-performance, adaptable DC-DC converter module that can be used in a variety of applications.
TPSM53604RDAR Features
-
Compact size
-
High efficiency
-
Low-side MOSFET
-
Protection features
-
Wide input voltage range
-
Adjustable output voltage
TPSM53604RDAR Applications
-
Automotive
-
Telecommunications
-
Consumer electronics
-
Industrial automation
-
Power over Ethernet (PoE)
