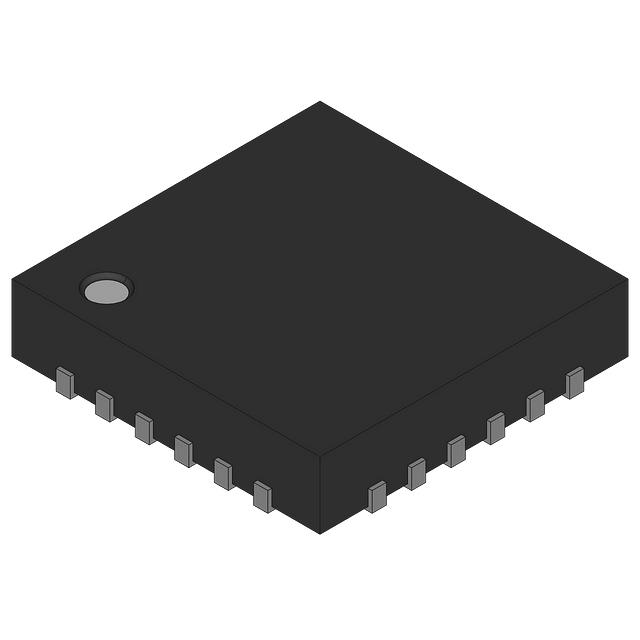

TPS65053IRGERQ1
Or copy the link below:
- Mfr.Part #
- TPS65053IRGERQ1
- Manufacturer
- Texas Instruments
- Package / Case
- 24-VFQFN Exposed Pad
- Datasheet
- Download
- Description
- TPS65053-Q1 AUTOMOTIVE 1.5V TO 6
- Stock
- 31,819
- In Stock ：
- 31,819
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Texas Instruments
- Product Category :
- Power Management - Specialized
- Output Power :
- 2.8W
- HTS Code :
- 8542.39.00.01
- Length :
- 4mm
- Supply Voltage :
- 3.6V
- Supply Voltage-Max (Vsup) :
- 6V
- Output Current :
- 1A
- Pbfree Code :
- yes
- Threshold Voltage :
- 1.8
- Qualification Status :
- Not Qualified
- Pin Count :
- 24
- Output Voltage :
- 4V
- Quiescent Current :
- 32μA
- Lead Free :
- Lead Free
- Mount :
- Surface Mount
- Switching Frequency-Max :
- 2250kHz
- ECCN Code :
- EAR99
- Height :
- 1mm
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- JESD-609 Code :
- e4
- Operating Temperature :
- -40°C~85°C
- Operating Supply Current :
- 1.25mA
- Number of Terminations :
- 24
- Width :
- 4mm
- Voltage - Supply :
- 2.5V~6V
- Series :
- Automotive, AEC-Q100
- Contact Plating :
- Gold
- Applications :
- Automotive
- Max Duty Cycle :
- 100 %
- Terminal Position :
- QUAD
- Base Part Number :
- TPS65053
- Lifecycle Status :
- ACTIVE (Last Updated: 6 days ago)
- RoHS Status :
- ROHS3 Compliant
- Peak Reflow Temperature (Cel) :
- 260
- Factory Lead Time :
- 6 Weeks
- Moisture Sensitivity Level (MSL) :
- 3 (168 Hours)
- Supply Current-Max (Isup) :
- 0.21mA
- Adjustable Threshold :
- yes
- Packaging :
- Tape and Reel (TR)
- Terminal Pitch :
- 0.5mm
- Power Supplies :
- 3.6V
- Package / Case :
- 24-VFQFN Exposed Pad
- Analog IC - Other Type :
- POWER SUPPLY SUPPORT CIRCUIT
- Number of Functions :
- 1
- Number of Pins :
- 24
- Thickness :
- 880μm
- Mounting Type :
- Surface Mount
- Supply Voltage-Min (Vsup) :
- 2.5V
- Number of Channels :
- 5
- Terminal Form :
- NO LEAD
- Datasheets
- TPS65053IRGERQ1
Power Management - Specialized Texas Instruments TPS65053IRGERQ1 Overview
The Power Management - Specialized Texas Instruments TPS65053IRGERQ1 is a versatile automotive-grade power management chip designed to cater to the rigorous demands of automotive and industrial applications. This chip provides a highly efficient solution for devices requiring multiple output voltages from a single input voltage ranging between 1.5V to 6V. Its robust design ensures reliability and performance in challenging environments, making it an ideal choice for manufacturers looking to enhance their automotive systems. With its compact form factor and integrated functionality, the TPS65053IRGERQ1 simplifies design complexities and accelerates time-to-market for automotive electronics developers.
TPS65053IRGERQ1 Features
The TPS65053IRGERQ1 includes several key features that make it a standout choice for power management solutions. It offers multiple DC-DC converters, a dedicated controller for efficient power conversion, and integrated protection mechanisms against over-voltage, under-voltage, and over-temperature conditions. Furthermore, its ability to support a wide input voltage range enhances its versatility, while its power efficiency contributes to the extended battery life of the end application.
TPS65053IRGERQ1 Applications
- Automotive Infotainment Systems: In these systems, the TPS65053IRGERQ1 manages power supply efficiently to ensure stable operation even under fluctuating input voltages typical in automotive environments.
- Advanced Driver-Assistance Systems (ADAS): The chip's ability to deliver multiple output voltages reliably supports the complex power requirements of sensors and processors in ADAS, enhancing safety features in vehicles.
- Portable Industrial Equipment: The robustness of the TPS65053IRGERQ1 makes it suitable for portable industrial devices that require reliable power management in varying environmental conditions.
- Telematics and Vehicle Tracking: Ensuring consistent performance, the TPS65053IRGERQ1 supplies power to GPS and communication equipment in telematics systems, facilitating effective vehicle tracking and data transmission.
