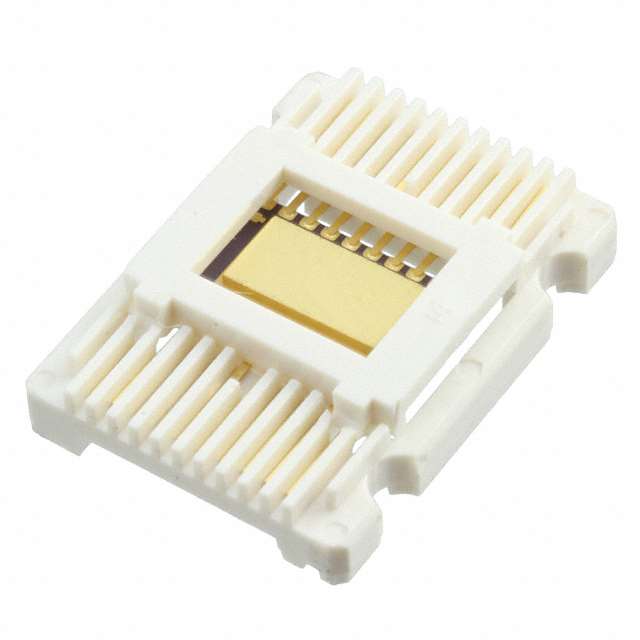

TPS50301SHKH
Or copy the link below:
- Mfr.Part #
- TPS50301SHKH
- Manufacturer
- Texas Instruments
- Package / Case
- Datasheet
- Download
- Description
- IC REG BUCK ADJUSTABLE 3A 20CFP
- Stock
- 7
- In Stock ：
- 7
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Texas Instruments
- Product Category :
- Voltage Regulators - DC DC Switching Regulators
- Terminal Position :
- Dual
- Control Mode :
- CURRENT-MODE
- Max Operating Temperature :
- 210°C
- Width :
- 7.38mm
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Synchronous Rectifier :
- yes
- Qualification Status :
- Not Qualified
- Number of Functions :
- 1
- Voltage - Output :
- 5.5V
- Analog IC - Other Type :
- SWITCHING REGULATOR
- Max Input Voltage :
- 6.3V
- Number of Terminations :
- 20
- Number of Pins :
- 20
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Quiescent Current :
- 5mA
- Temperature Grade :
- Military
- Lead Free :
- Contains Lead
- Min Output Voltage :
- 795mV
- Control Technique :
- PULSE WIDTH MODULATION
- Thickness :
- 2.25mm
- Efficiency :
- 95 %
- ECCN Code :
- EAR99
- Min Supply Voltage :
- 1.6V
- Min Input Voltage :
- 1.6V
- Number of Outputs :
- 1
- RoHS Status :
- Non-RoHS Compliant
- Height :
- 2.54mm
- Output Type :
- Adjustable
- Max Output Voltage :
- 5.5V
- Reach Compliance Code :
- not_compliant
- Max Output Current :
- 3A
- Output Configuration :
- Positive
- Switcher Configuration :
- Buck
- Frequency - Switching :
- 1MHz
- Mount :
- Surface Mount
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Length :
- 12.7mm
- Min Operating Temperature :
- -55°C
- Current - Output :
- 3A
- Terminal Form :
- Flat
- Datasheets
- TPS50301SHKH
Voltage Regulators - DC DC Switching Regulators Texas Instruments TPS50301SHKH Overview
The TPS50301SHKH from Texas Instruments represents a robust solution in the realm of adjustable DC DC switching regulators. Designed to manage power requirements efficiently, this IC (integrated circuit) ensures reliable performance with its capability to provide an adjustable output from a higher voltage input. The compact 20-pin CFP package is ideal for advanced electronic applications where space and thermal management are critical. Its versatility in handling up to 3A of output current makes it an essential component in various high-demand environments, fostering enhanced system reliability and power management efficiency.
TPS50301SHKH Features
This high-performance regulator integrates several features that enhance its utility and reliability in demanding applications. Key features include:
- Adjustable output voltage, providing flexibility in power management.
- High efficiency, which ensures minimal thermal footprint and reduces energy consumption.
- Up to 3A output current capacity, suitable for high-load applications.
- Compact 20-pin CFP package, ideal for space-constrained applications.
- Robust thermal performance that guarantees stability across various temperature ranges.
TPS50301SHKH Applications
- Portable Devices: Can be used to provide stable voltage in battery-powered devices, ensuring efficiency and prolonged battery life.
- Networking Equipment: Ideal for routers and switches where consistent and reliable power delivery is crucial for system stability.
- Consumer Electronics: Suitable for home entertainment systems, providing efficient power conversion which enhances overall system longevity.
- Industrial Systems: Applies in automated control systems where precise voltage regulation is necessary for accurate operations.
- Telecommunications: Utilized in telecommunications infrastructure to maintain stable operation in high-load conditions.
