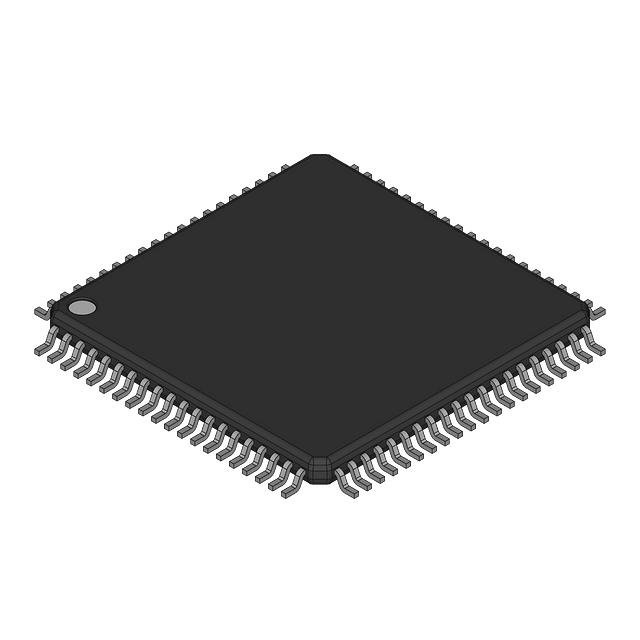

TMS320F28069FPFPQ

Manufacturer :

Texas Instruments

Product Category :

Microcontrollers

Peak Reflow Temperature (Cel) :

260

Width :

12mm

Supply Voltage :

3.3V

Peripherals :

Brown-out Detect/Reset, DMA, POR, PWM, WDT

Has ADC :

yes

JESD-609 Code :

e4

Terminal Position :

QUAD

Pin Count :

80

Lead Free :

Lead Free

Pbfree Code :

yes

Oscillator Type :

Internal

Bit Size :

32

Connectivity :

CANbus, I2C, McBSP, SCI, SPI, UART/USART

Number of Pins :

80

Number of I/O :

40

Terminal Finish :

Nickel/Palladium/Gold (Ni/Pd/Au)

DAC Channels :

No

Packaging :

Tray

Program Memory Type :

Flash

Density :

2 Mb

Frequency :

90MHz

Thickness :

1mm

Terminal Pitch :

0.5mm

Package / Case :

80-TQFP Exposed Pad

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Core Processor :

C28x

Interface :

CAN, I2C, SCI, SPI, UART, USART

Data Converter :

A/D 12x12b

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Terminal Form :

Gull wing

Low Power Mode :

yes

Voltage - Supply (Vcc/Vdd) :

1.71V~1.995V

Height :

1.2mm

Qualification Status :

Not Qualified

DMA Channels :

yes

Supply Voltage-Max (Vsup) :

3.63V

Integrated Cache :

No

Boundary Scan :

yes

Factory Lead Time :

6 Weeks

Memory Size :

256KB

Number of Terminations :

80

Length :

12mm

Operating Temperature :

-40°C~125°C TA

Number of External Interrupts :

3

Core Size :

32-Bit

RoHS Status :

ROHS3 Compliant

Series :

Automotive, AEC-Q100, C2000™ C28x Piccolo™

Surface Mount :

yes

RAM Size :

50K x 16

Format :

FLOATING-POINT

PWM Channels :

yes

Base Part Number :

320F28069

Number of UART Channels :

2

Mounting Type :

Surface Mount

uPs/uCs/Peripheral ICs Type :

MICROCONTROLLER

Program Memory Size :

256KB 128K x 16

Lifecycle Status :

ACTIVE (Last Updated: 5 days ago)
