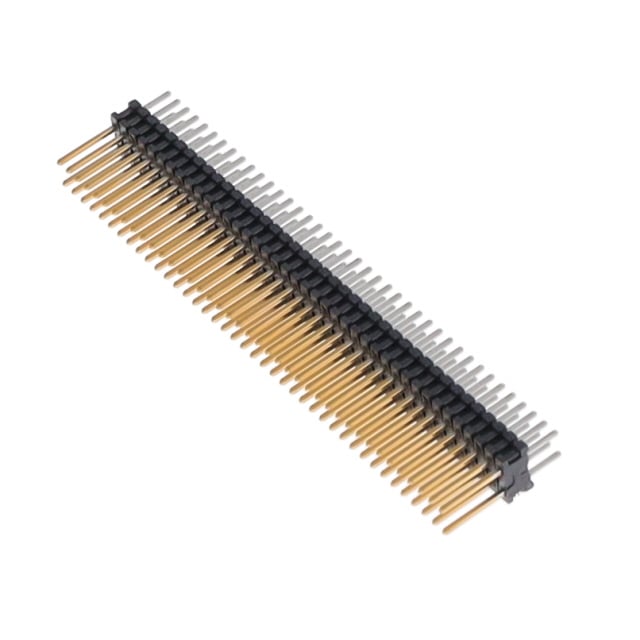

TMS-140-01-L-D
Or copy the link below:
- Mfr.Part #
- TMS-140-01-L-D
- Manufacturer
- Samtec, Inc.
- Package / Case
- Datasheet
- Download
- Description
- .050" (1.27MM) MICRO HEADER
- Stock
- 100
- In Stock ：
- 100
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Samtec, Inc.
- Product Category :
- Headers, Male Pins
- Plating Thickness :
- 10μin
- Contact Pattern :
- RECTANGULAR
- Factory Lead Time :
- 3 Weeks
- IEC Conformance :
- No
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Gender :
- Male
- JESD-609 Code :
- e3
- Contact Style :
- SQ PIN-SKT
- REACH SVHC :
- No SVHC
- Operating Temperature (Min) :
- -55°C
- Pitch :
- 1.27mm
- Filter Feature :
- No
- DIN Conformance :
- No
- Rated Current (Signal) :
- 5A
- Pbfree Code :
- yes
- Reliability :
- COMMERCIAL
- Mount :
- Through Hole
- Contact Material :
- Bronze
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Termination :
- Through Hole
- PCB Contact Pattern :
- RECTANGULAR
- Number of Conductors :
- ONE
- Option :
- GENERAL PURPOSE
- Reference Standard :
- UL
- Number of Rows :
- 2
- Contact Plating :
- Gold
- Insulator Color :
- Black
- Radiation Hardening :
- No
- Number Of PCB Rows :
- 2
- Number of Contacts :
- 80
- Connector Type :
- BOARD CONNECTOR
- Mixed Contacts :
- No
- RoHS Status :
- ROHS3 Compliant
- Mating Contact Row Spacing :
- 0.1 inch
- Body Breadth :
- 0.196 inch
- MIL Conformance :
- No
- Published :
- 2012
- Datasheets
- TMS-140-01-L-D
2-Row BOARD CONNECTOR Through Hole Bronze LIQUID CRYSTAL POLYMER (LCP)
TMS-140-01-L-D Overview
The packaging contains BOARD CONNECTOR.There is a Through Hole mount on the part.
TMS-140-01-L-D Features
TMS-140-01-L-D Applications
There are a lot of Samtec Inc.
TMS-140-01-L-D Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
