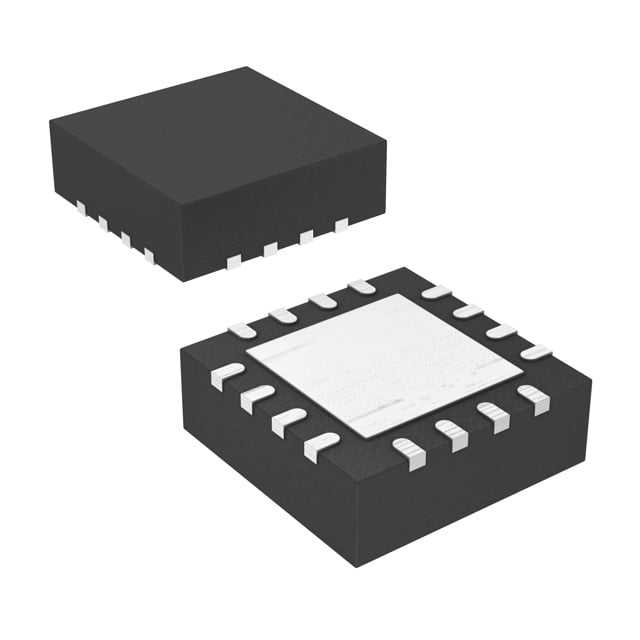

TMP513AIRSAR

Manufacturer :

Texas Instruments

Product Category :

Thermal Management

Operating Supply Current :

1.4mA

Peak Reflow Temperature (Cel) :

260

Number of Terminations :

16

Lead Free :

Lead Free

Number of Pins :

16

Voltage - Supply :

3V~26V

Quiescent Current :

55μA

Width :

4mm

Topology :

ADC, Multiplexer, Register Bank

Sensing Temperature :

-40°C~125°C

Resolution :

1.5 B

Terminal Finish :

Nickel/Palladium/Gold (Ni/Pd/Au)

Output Type :

2-Wire Serial, I2C/SMBUS

Supply Voltage-Max (Vsup) :

26V

Terminal Position :

QUAD

Height :

1mm

Operating Temperature :

-40°C~125°C

Terminal Pitch :

0.65mm

Moisture Sensitivity Level (MSL) :

2 (1 Year)

RoHS Status :

ROHS3 Compliant

Mount :

Surface Mount

Factory Lead Time :

6 Weeks

HTS Code :

8542.39.00.01

Mounting Type :

Surface Mount

Output Alarm :

yes

Supply Voltage :

12V

Output Fan :

No

ECCN Code :

EAR99

Supply Voltage-Min (Vsup) :

3V

Number of Channels :

2

Length :

4mm

Package / Case :

16-VQFN Exposed Pad

JESD-609 Code :

e4

Packaging :

Tape and Reel (TR)

Base Part Number :

TMP513

Interface :

2-Wire, Serial

Analog IC - Other Type :

ANALOG CIRCUIT

Pbfree Code :

yes

Function :

Temp Monitoring System (Sensor), Watchdog

Accuracy :

±2.5°C Local(Max), ±5°C Remote(Max)

Thickness :

900μm

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Sensor Type :

Internal and External
