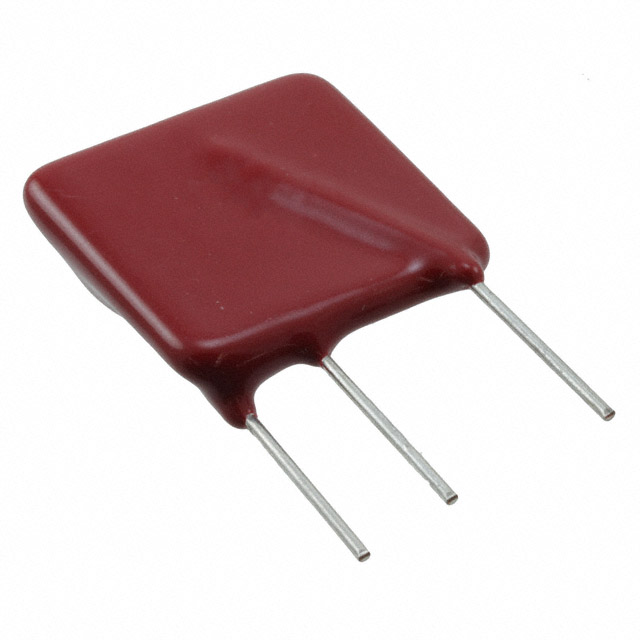

TMOV25SP150M

Manufacturer :

Littelfuse

Product Category :

Packaging :

Bulk

Operating Temperature :

-55°C~85°C TA

Terminal Finish :

Tin (Sn)

JESD-609 Code :

e3

Reference Standard :

CECC42000

Capacitance @ Frequency :

2300pF @ 1MHz

Package / Case :

Square 28mm, 3 Lead

Series :

TMOV® 25S

Energy :

220J

Voltage - Rated DC :

200V

Reach Compliance Code :

Unknown

Mounting Type :

Through Hole

Factory Lead Time :

13 Weeks

Published :

2009

Number of Circuits :

1

Clamping Voltage :

390V

RoHS Status :

ROHS3 Compliant

Max Voltage Rating (AC) :

150V

Capacitance :

2.3nF

Lead Pitch :

19.2mm

Max Surge Current :

20kA

Terminal Shape :

Wire

Width :

12.1mm

Max Voltage Rating (DC) :

200V

HTS Code :

8533.40.40.00

Varistor Voltage (Min) :

216V

Maximum AC Volts :

150V

Resistor Type :

VARISTOR

Varistor Voltage (Max) :

264V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Terminations :

3

Voltage - Rated AC :

150V

ECCN Code :

EAR99

Mount :

Radial, Through Hole

Varistor Voltage :

240V

Feature :

Thermally Protected

Termination :

Solder
