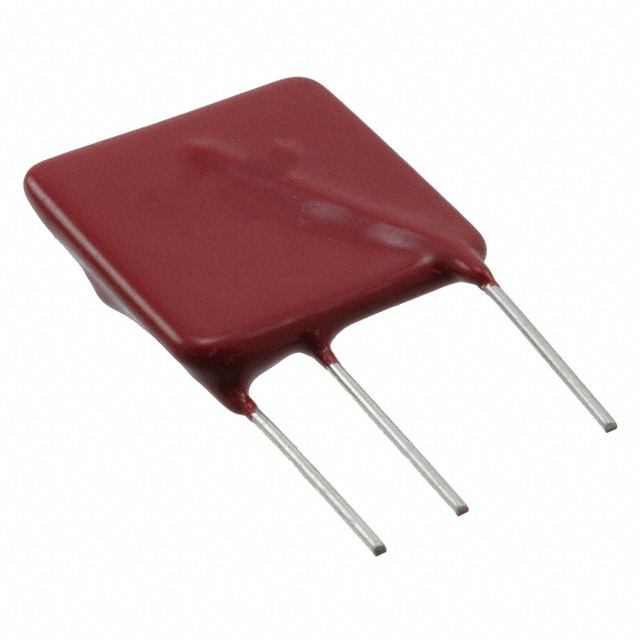

TMOV25SP115M

Manufacturer :

Littelfuse

Product Category :

Varistor Voltage (Min) :

162V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Circuits :

1

Max Voltage Rating (AC) :

115V

Depth :

11.7mm

Mounting Type :

Through Hole

Feature :

Thermally Protected

Package / Case :

Square 28mm, 3 Lead

Mount :

Radial, Through Hole

Terminal Finish :

Tin (Sn)

Number of Terminations :

3

Capacitance @ Frequency :

3200pF @ 1MHz

Length :

28mm

Factory Lead Time :

13 Weeks

Varistor Voltage (Typ) :

180V

Max Voltage Rating (DC) :

150V

Max Surge Current :

20kA

Reach Compliance Code :

Unknown

Resistor Type :

VARISTOR

Series :

TMOV® 25S

Voltage - Rated DC :

150V

Lead/Base Style :

Pin

Clamping Current :

100A

RoHS Status :

ROHS3 Compliant

JESD-609 Code :

e3

Varistor Voltage (Max) :

198V

Varistor Voltage :

180V

Capacitance :

3.2nF

Voltage - Rated AC :

115V

ECCN Code :

EAR99

Energy :

170J

Packaging :

Bulk

HTS Code :

8533.40.40.00

Clamping Voltage :

295V

Reference Standard :

CECC42000

Operating Temperature :

-55°C~85°C TA

Published :

2009

Terminal Shape :

Wire
