TM11R-5L-3232(50)
Or copy the link below:
- Mfr.Part #
- TM11R-5L-3232(50)
- Manufacturer
- Hirose
- Package / Case
- Datasheet
- Download
- Description
- CONN MOD JACK 8P8C R/A SHLD
- Stock
- 9,929
- In Stock ：
- 9,929
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Hirose
- Product Category :
- Modular Connector Jacks
- Depth :
- 17.6mm
- Contact Style :
- TELCOM, MODULAR
- Housing Color :
- Grey
- Contact Finish Thickness :
- 50.0μin 1.27μm
- Termination :
- Solder
- Mounting Type :
- Through Hole
- Contact Material :
- Phosphor Bronze
- Max Current Rating :
- 500mA
- Width :
- 56.6mm
- Feature :
- Board Lock
- Number of Positions/Contacts :
- 8p8c (RJ45, Ethernet)
- Mount :
- Through Hole
- LED Color :
- Does Not Contain LED
- Body/Shell Style :
- Receptacle
- Shielding :
- Shielded
- PCB Contact Pattern :
- STAGGERED
- Series :
- TM11R
- Max Voltage Rating (AC) :
- 125V
- Pitch :
- 2.03mm
- Gender :
- FEMALE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Material :
- Polybutylene Terephthalate (PBT)
- Number of Positions Loaded :
- 32
- Reference Standard :
- UL
- Lead Free :
- Lead Free
- Orientation :
- 90° Angle (Right)
- Rated Current (Signal) :
- 0.5A
- Radiation Hardening :
- No
- Tab Direction :
- Down
- Connector Type :
- JACK
- REACH SVHC :
- Unknown
- Number of Rows :
- 1
- Number of Ports :
- 4
- Operating Temperature :
- -25°C~80°C
- RoHS Status :
- RoHS Compliant
- Contact Finish :
- Gold
- Length :
- 56.6mm
- Published :
- 2006
- Total Number of Contacts :
- 32
- Packaging :
- Tray
- Reliability :
- COMMERCIAL
- Factory Lead Time :
- 10 Weeks
- Datasheets
- TM11R-5L-3232(50)
.jpg)

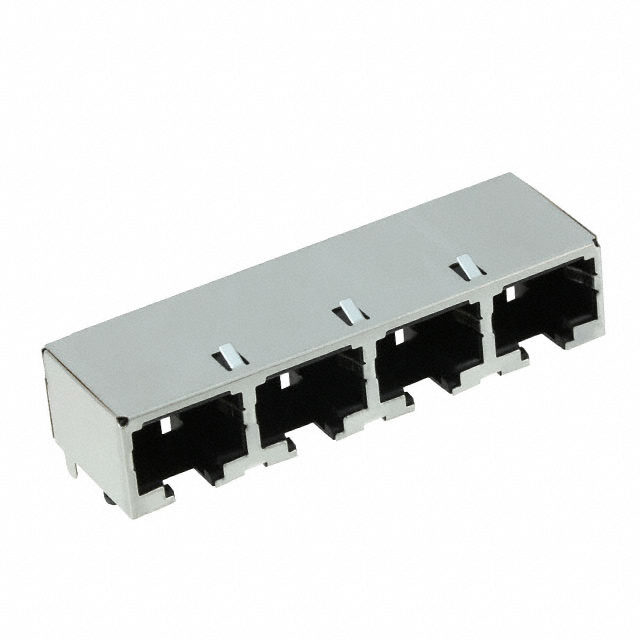

TM11R Jack Tray Shielded 8p8c (RJ45, Ethernet) 4 Port 90° Angle (Right) Solder Through Hole -25°C~80°C
TM11R-5L-3232(50) Overview
Packaging for this item is Jack.Through Hole is the type of mounting for the device.To package the product, a Tray case is used.The product is a member of the TM11R Series.The device has 4 ports for managing a variety of tasks.It is more powerful in many ways due to its Board Lock feature.It is mounted by Through Hole.It operates at an operating temperature of -25°C~80°C.
TM11R-5L-3232(50) Features
TM11R series
TM11R-5L-3232(50) Applications
There are a lot of Hirose Electric Co Ltd
TM11R-5L-3232(50) Modular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
