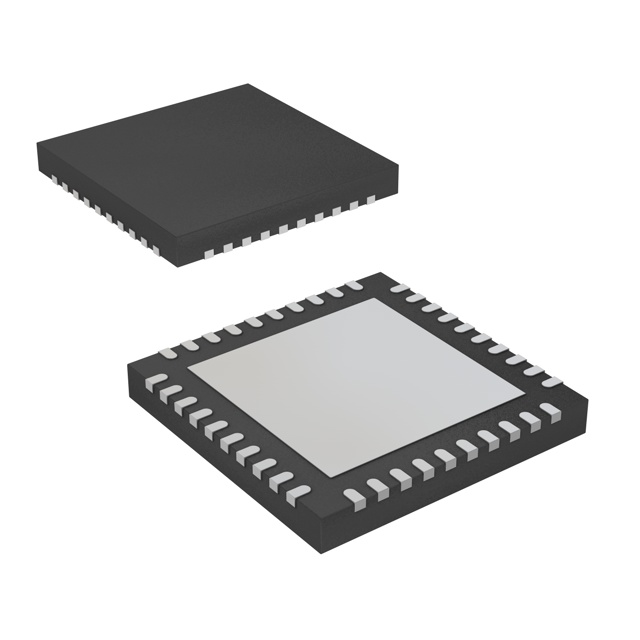

TLV320AIC3007IRSBT

Manufacturer :

Texas Instruments

Product Category :

CODECS

Width :

5mm

Mount :

Surface Mount

Min Supply Voltage :

1.1V

ECCN Code :

EAR99

Operating Supply Voltage :

1.95V

Termination :

SMD/SMT

Pbfree Code :

yes

Number of DAC Channels :

2

Moisture Sensitivity Level (MSL) :

2 (1 Year)

Voltage - Supply, Analog :

2.7V~3.6V

Factory Lead Time :

6 Weeks

Number of Terminations :

40

Output Code :

TWOS COMPLEMENT

Input Code :

TWOS COMPLEMENT

Mounting Type :

Surface Mount

Peak Reflow Temperature (Cel) :

260

JESD-609 Code :

e4

Number of ADCs / DACs :

2 / 2

Resolution (Bits) :

24 b

Base Part Number :

TLV320AIC3007

Sampling Rate :

96 ksps

Max Supply Voltage :

3.6V

Interface :

I2C, Serial

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Height :

800μm

Length :

5mm

Weight :

54.68623mg

Number of Analog Outputs :

6

Voltage - Supply, Digital :

1.525V~1.95V

Number of Pins :

40

Terminal Pitch :

0.4mm

Dynamic Range, ADCs / DACs (db) Typ :

86 / 92

S/N Ratio, ADCs / DACs (db) Typ :

87 / 93

Filter :

yes

RoHS Status :

ROHS3 Compliant

Lead Free :

Lead Free

Type :

Stereo Audio

Packaging :

Tape and Reel (TR)

Number of Channels :

12

Terminal Finish :

Nickel/Palladium/Gold (Ni/Pd/Au)

Package / Case :

40-WQFN Exposed Pad

Power Consumption :

15mW

Terminal Position :

QUAD

Sigma Delta :

yes

Supply Voltage :

1.8V

Data Interface :

I2C, Serial

Radiation Hardening :

No

Operating Temperature :

-40°C~85°C

REACH SVHC :

No SVHC

Number of Functions :

1

Pin Count :

40

Signal to Noise Ratio (SNR) :

93 dB

Number of Analog Inputs :

7

Thickness :

750μm
