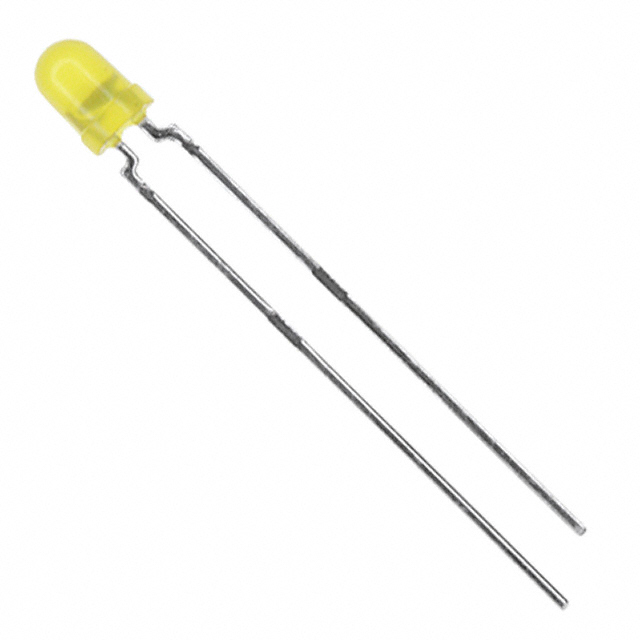

TLLY4400

Manufacturer :

Vishay

Product Category :

Max Operating Temperature :

100°C

Published :

2007

Reverse Voltage :

20V

Factory Lead Time :

12 Weeks

Min Operating Temperature :

-40°C

Wavelength :

594 nm

Height :

4.5mm

Millicandela Rating :

1.2mcd

Lens Color :

Yellow

Viewing Angle :

50°

Forward Voltage :

2.4V

Wavelength - Dominant :

588nm

Illumination Color :

Yellow

Number of LEDs :

1

Lens Size :

3.20mm Dia

Voltage - Rated DC :

2.4V

Package / Case :

Radial

RoHS Status :

ROHS3 Compliant

Radiation Hardening :

No

Mount :

Through Hole

Current - Test :

2mA

Number of Pins :

2

Depth :

3.2mm

Mounting Type :

Through Hole

Configuration :

Standard

Lens Transparency :

Diffused

Luminous Intensity :

1.2 mcd

Packaging :

Bulk

Color :

Yellow

Supplier Device Package :

3mm

Lens Style :

Round with Domed Top

Number of Elements :

1

Height (Max) :

6.10mm

Length :

3.2mm

Diameter :

2.4mm

Voltage - Forward (Vf) (Typ) :

2.4V

Wavelength - Peak :

585nm

Base Part Number :

TLL4400

REACH SVHC :

Unknown

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Forward Current :

2mA

Power Dissipation :

20mW
