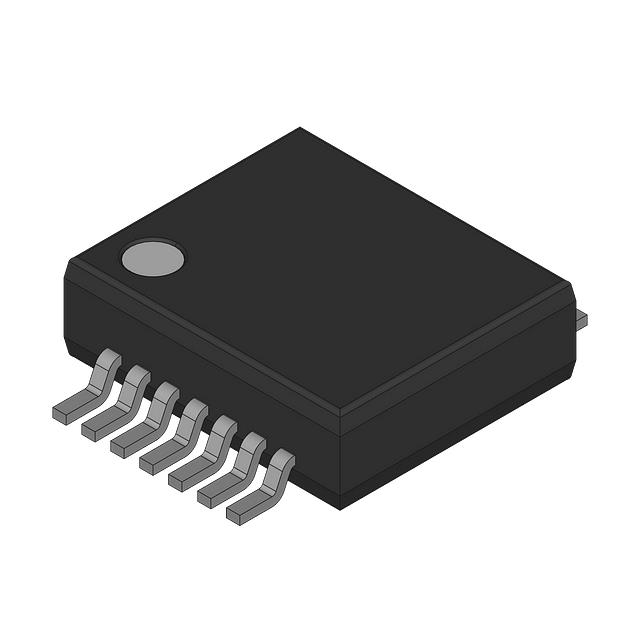

TLE7278-2EV50

Manufacturer :

Infineon Technologies

Product Category :

Voltage Regulators - Linear

Package / Case :

14-LSSOP (0.154, 3.90mm Width) Exposed Pad

Terminal Position :

Dual

PSRR :

60dB (100Hz)

Protection Features :

Over Current, Over Temperature, Short Circuit

Output Voltage 1 :

5V

Min Current Limit :

200mA

Quiescent Current :

28A

Width :

3.9mm

Output Type :

FIXED

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Voltage Dropout (Max) :

0.5V @ 180mA

JESD-609 Code :

e3

Radiation Hardening :

No

RoHS Status :

RoHS Compliant

Mount :

Surface Mount

Voltage - Input (Max) :

45V

Factory Lead Time :

26 Weeks

Number of Regulators :

1

Series :

Automotive, AEC-Q100, OPTIREG™

Halogen Free :

Halogen Free

Max Supply Voltage :

45V

Packaging :

Tape and Reel (TR)

Output Configuration :

Positive

Published :

2009

Current - Quiescent (Iq) :

36μA

Number of Functions :

1

Number of Pins :

14

Base Part Number :

TLE7278

Max Output Current :

180mA

Output Voltage :

5V

Number of Terminations :

14

Mounting Type :

Surface Mount

Operating Temperature :

-40°C~150°C

Control Features :

Enable, Reset, Watchdog

Min Input Voltage :

5.5V

ECCN Code :

EAR99

Terminal Pitch :

0.65mm

Terminal Finish :

Tin (Sn)

Watchdog Timer :

yes

Dropout Voltage :

250mV

Terminal Form :

Gull wing

Nominal Output Voltage :

5V

Lead Free :

Lead Free

Length :

4.9mm

Accuracy :

2 %
