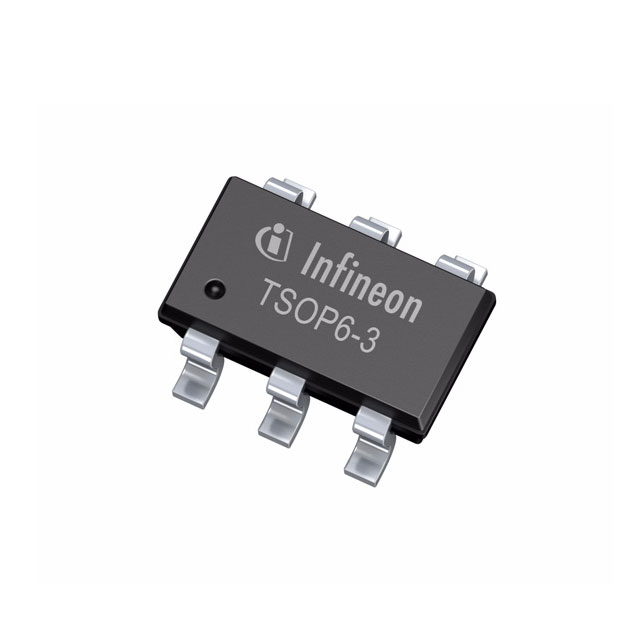

TLE49663KHTSA1
Or copy the link below:
- Mfr.Part #
- TLE49663KHTSA1
- Manufacturer
- Infineon Technologies
- Package / Case
- SOT-23-6 Thin, TSOT-23-6
- Datasheet
- Download
- Description
- MAG SWITCH SPEC PURP TSOP-6-6
- Stock
- 3,347
- In Stock ：
- 3,347
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Infineon Technologies
- Product Category :
- Magnetic Sensors - Switches (Solid State)
- Body Length or Diameter :
- 2.9mm
- Number of Pins :
- 6
- Min Operating Temperature :
- -40°C
- Max Operating Temperature :
- 150°C
- Factory Lead Time :
- 20 Weeks
- Published :
- 2010
- Series :
- Automotive, AEC-Q100
- Packaging :
- Cut Tape (CT)
- Magnetic Field Range-Max :
- 4.2 mT
- Output Type :
- Open Collector
- Hysteresis :
- 5 mT
- Housing :
- Plastic
- Mounting Type :
- Surface Mount
- Output Range :
- 0-10mA
- Terminal Finish :
- Tin (Sn)
- Output Current :
- 10mA
- Mount :
- Surface Mount
- Package / Case :
- SOT-23-6 Thin, TSOT-23-6
- Current - Supply (Max) :
- 7mA
- RoHS Status :
- ROHS3 Compliant
- Function :
- Special Purpose
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Body Height :
- 1.1mm
- Halogen Free :
- Not Halogen Free
- Pbfree Code :
- yes
- JESD-609 Code :
- e3
- Max Supply Current :
- 7mA
- Termination Type :
- Solder
- Max Output Current :
- 50mA
- Number of Terminations :
- 6
- Power Supplies :
- 2.7/18V
- Lead Free :
- Lead Free
- Magnetic Field Range-Min :
- -4.2 mT
- Feature :
- Temperature Compensated
- Output Circuit Type :
- SINGLE-ENDED
- Sensing Method :
- Hall Effect
- Voltage - Supply :
- 2.7V~24V
- Datasheets
- TLE49663KHTSA1
TLE49663KHTSA1 Documents
Automotive, AEC-Q100 Series Open Collector 2.7V~24V Special Purpose 7mA-Supply (Max) Tin (Sn) Temperature Compensated SOT-23-6 Thin, TSOT-23-6
TLE49663KHTSA1 Overview
Cut Tape (CT) package done to protect the magnetic switch from damage. In order to prevent damage to the magnetic switches, they are packaged in SOT-23-6 Thin, TSOT-23-6 packages. Good performance is achieved by magnetic switches that can supply 7mA as maximum current. If these switches work, they can output 50mA as the maximum current. Switches of this type can deliver currents up to 7mA. Switches require 6 pins to work. 6 terminations are contained in it. The switches should normally output 10mA current. There is 150°C maximum operating temperature for magnetic switches. In order for this magnetic switch to function, the working temperature must be greater than -40°C.
TLE49663KHTSA1 Features
Packaging: Cut Tape (CT)
Moisture Sensitivity Level (MSL): 1 (Unlimited)
Supply Voltage: 2.7V~24V
Mounting Type: Surface Mount
6 Pins
6 Terminations
Output Type: Open Collector
Maximum Supply Current: 7mA
TLE49663KHTSA1 Applications
There are a lot of Infineon Technologies
TLE49663KHTSA1 Magnetic Switches applications.
- Convertible roof position
- Motor assemblies
- Medication dispensing control
- Security and military applications
- Detection of ferromagnetic
- Discrimination of ferromagnetic
- Localization of ferromagnetic
- Conducting objects
- Navigation
- Position tracking
