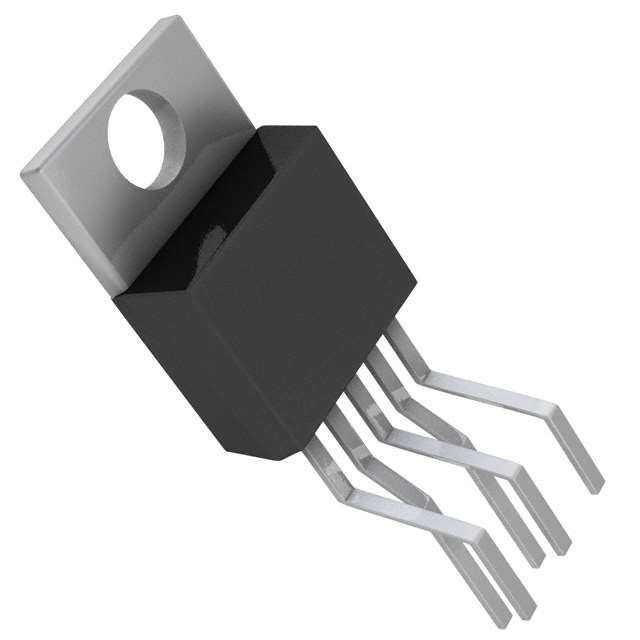

TLE4270NKSA1

Manufacturer :

Infineon Technologies

Product Category :

Voltage Regulators - Linear

Output Voltage :

5V

Voltage - Input (Max) :

42V

ECCN Code :

EAR99

Output Voltage 1 :

5V

Base Part Number :

TLE4270

Output Configuration :

Positive

Current - Supply (Max) :

90mA

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Published :

1999

Mounting Type :

Through Hole

Number of Pins :

5

Packaging :

Tube

Qualification Status :

Not Qualified

Operating Temperature :

-40°C~150°C

Control Features :

Reset

Pbfree Code :

No

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Pin Count :

3

Number of Regulators :

1

Current - Quiescent (Iq) :

1.5mA

Min Current Limit :

650mA

Accuracy :

2 %

Terminal Finish :

TIN LEAD

Number of Terminations :

5

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Dropout Voltage :

350mV

JESD-609 Code :

e0

Terminal Position :

Zig-Zag

Mount :

Through Hole

Number of Functions :

1

PSRR :

54dB (100Hz)

Package / Case :

TO-220-5 Formed Leads

Output Type :

FIXED

Protection Features :

Over Current, Over Temperature, Over Voltage, Reverse Polarity, Short Circuit, Transient Voltage

Min Input Voltage :

6V

Reach Compliance Code :

Unknown

Max Output Current :

650mA

Voltage Dropout (Max) :

0.7V @ 550mA

RoHS Status :

Non-RoHS Compliant
