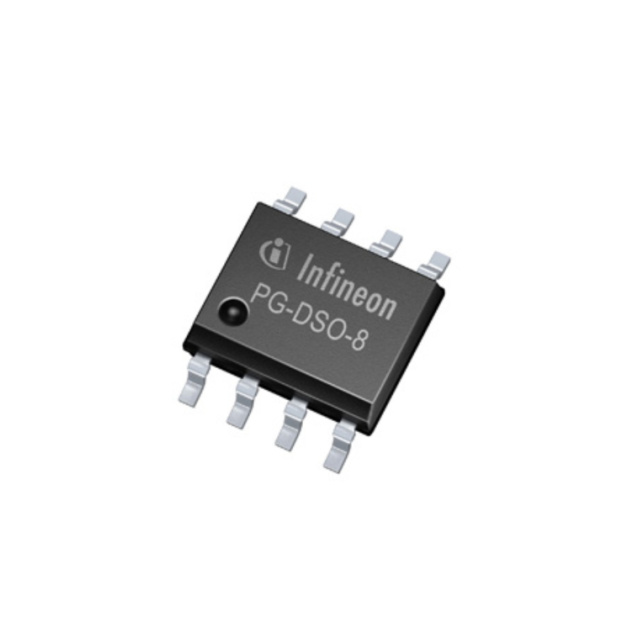

TLE4269GMXUMA2

Manufacturer :

Infineon Technologies

Product Category :

Voltage Regulators - Linear

RoHS Status :

ROHS3 Compliant

Terminal Finish :

Tin (Sn)

ECCN Code :

EAR99

Quiescent Current :

240μA

Halogen Free :

Halogen Free

Radiation Hardening :

No

Terminal Form :

Gull wing

Min Current Limit :

150mA

Number of Functions :

1

Control Features :

Reset

JESD-609 Code :

e3

Packaging :

Tape and Reel (TR)

Number of Pins :

14

Published :

1999

Surface Mount :

yes

Max Output Current :

100mA

Output Voltage :

5V

Mounting Type :

Surface Mount

Current - Supply (Max) :

8mA

Dropout Voltage :

250mV

Factory Lead Time :

20 Weeks

Package / Case :

14-SOIC (0.154, 3.90mm Width)

Output Voltage 1 :

5V

Terminal Position :

Dual

Voltage Dropout (Max) :

0.5V @ 100mA

Length :

8.75mm

Width :

4mm

Number of Terminations :

14

Min Input Voltage :

6V

Voltage - Input (Max) :

45V

Current - Quiescent (Iq) :

300μA

Operating Temperature :

-40°C~150°C TJ

Protection Features :

Over Temperature, Reverse Polarity, Short Circuit

Output Configuration :

Positive

Output Type :

FIXED

Accuracy :

2 %

Series :

Automotive, AEC-Q100, OPTIREG™

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Number of Regulators :

1
