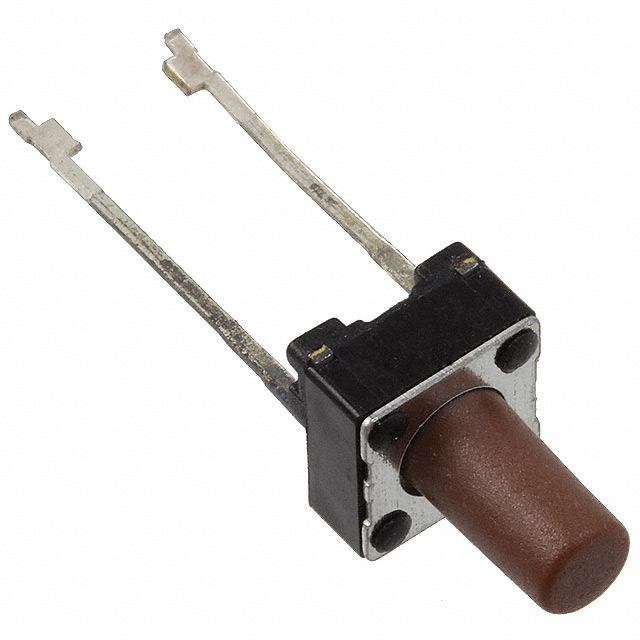

TL59BF100Q

Manufacturer :

E-Switch

Product Category :

Operating Temperature :

-20°C~70°C

Mounting Type :

Through Hole

Terminal Material :

Brass

Contact Resistance :

100MOhm

Operating Force :

100gf

Max Voltage Rating (DC) :

12V

Mount :

Through Hole

Package / Case :

Radial

Mechanical Life :

100,000 Cycles

Actuator Height off PCB, Vertical :

9.50mm

Contact Material :

Silver

RoHS Status :

ROHS3 Compliant

Voltage - Rated DC :

12V

Contact Current(DC)-Max :

0.05A

Termination :

PC Pin

Switch Type :

KEYPAD SWITCH

Sealing :

Molded

Contact Timing :

SNAP ACTION

Actuator Length :

5.9mm

Series :

TL59

Throw Configuration :

SPST

Dielectric Withstanding Voltage :

1000VRMS V

Factory Lead Time :

11 Weeks

Contact (DC) Max Rating R Load :

0.05A@50VDC

Body Breadth :

6.1976 mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Body Height :

3.6068mm

Contact Rating @ Voltage :

0.05A @ 12VDC

Packaging :

Tape and Box (TB)

Termination Style :

PC Pin

Actuator Material :

Polybutylene Terephthalate (PBT)

Circuit :

SPST-NO

Actuator Orientation :

Top Actuated

Contact Function :

OFF-(ON)

Switch Function :

Off-Mom

ECCN Code :

EAR99

Outline :

6.20mm x 6.20mm

Body Length or Diameter :

6.1976mm

JESD-609 Code :

e4

PCB Hole Count :

2

Orientation :

Straight

Housing Material :

Steel

Electrical Life :

100000 cycles

Published :

2006

Actuator Type :

Standard

Lead Free :

Lead Free

Current Rating :

50mA

Illumination :

Non-Illuminated

Switch Travel :

0.25mm
