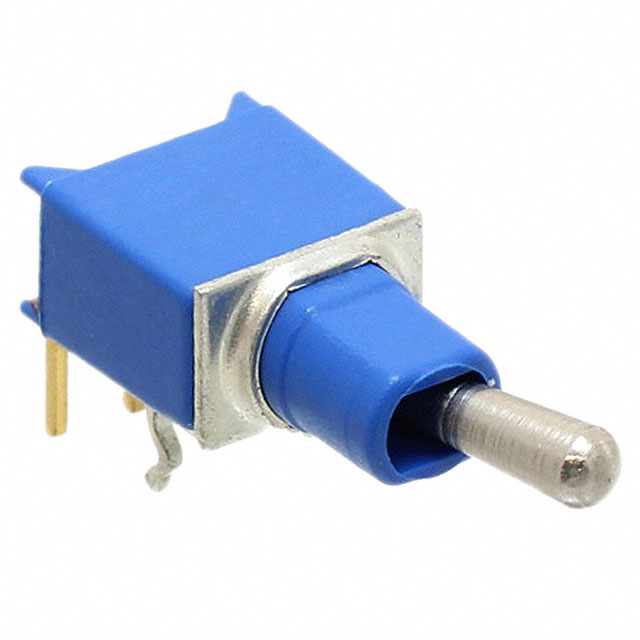

TL36W000050
Or copy the link below:
- Mfr.Part #
- TL36W000050
- Manufacturer
- APEM Inc.
- Package / Case
- Datasheet
- Download
- Description
- SWITCH TOGGLE SPDT 0.4VA 20V
- Stock
- 178
- In Stock ：
- 178
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- APEM Inc.
- Product Category :
- JESD-609 Code :
- e4
- Actuator Type :
- Standard Round
- Contact Current(AC)-Max :
- 0.02A
- Termination Style :
- PC Pin
- Feature :
- Epoxy Sealed Terminals
- Orientation :
- RIGHT ANGLE
- Mount :
- Brackets, Through Hole
- Contact Material :
- Brass
- Sealing :
- EPOXY TERMINAL SEALED
- Max Voltage Rating (AC) :
- 20V
- Bushing Thread :
- Unthreaded
- Contact Plating :
- Gold
- Contact (DC) Max Rating R Load :
- .02A@20VDC
- Voltage - Rated DC :
- 20V
- Body Length or Diameter :
- 8.1mm
- Switch Type :
- TOGGLE SWITCH
- Voltage - Rated AC :
- 20V
- Body Height :
- 5.55mm
- Current Rating (Amps) :
- 0.4VA AC/DC
- Actuator Material :
- Brass, Nickel Plated
- Contact Current(DC)-Max :
- 0.02A
- Actuator Length :
- 5.30mm
- HTS Code :
- 8536.50.90.65
- Contact (AC) Max Rating R Load :
- .02A@20VAC
- Termination :
- PC Pin
- Circuit :
- SPDT
- Mounting Type :
- Through Hole, Right Angle
- Factory Lead Time :
- 9 Weeks
- Pbfree Code :
- yes
- Contact Resistance :
- 20mOhm
- Electrical Life :
- 60,000 Cycles
- RoHS Status :
- ROHS3 Compliant
- Operating Temperature :
- -30°C~85°C
- ECCN Code :
- EAR99
- Series :
- TL
- Illumination :
- Non-Illuminated
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Bulk
- Switch Function :
- On-On
- Max Voltage Rating (DC) :
- 20V
- Datasheets
- TL36W000050
