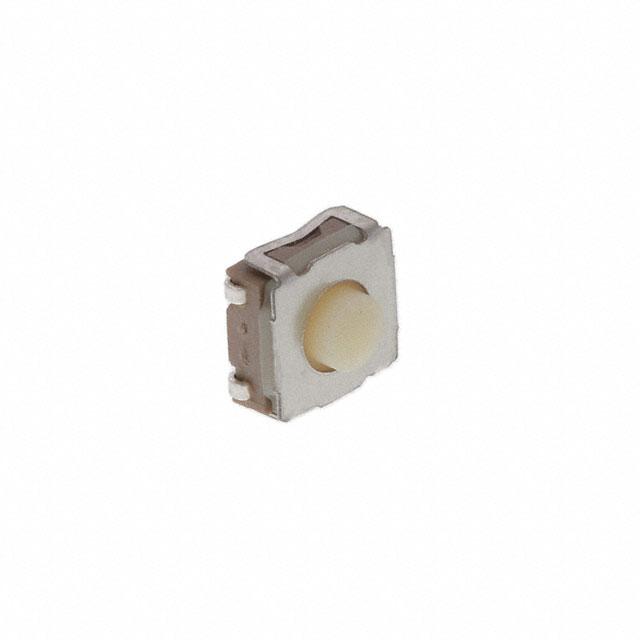

TL3304AF160QJ
Or copy the link below:
- Mfr.Part #
- TL3304AF160QJ
- Manufacturer
- E-Switch
- Package / Case
- Datasheet
- Download
- Description
- SWITCH TACTILE SPST-NO 0.05A 50V
- Stock
- 36,826
- In Stock ：
- 36,826
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- E-Switch
- Product Category :
- Throw Configuration :
- SPST
- Actuator Type :
- Standard
- Actuator Height off PCB, Vertical :
- 3.40mm
- Mechanical Life :
- 100,000 Cycles
- Published :
- 2002
- Termination Style :
- J Lead
- Factory Lead Time :
- 11 Weeks
- Packaging :
- Tape and Reel (TR)
- RoHS Status :
- ROHS3 Compliant
- Switch Type :
- PUSHBUTTON SWITCH
- Switch Travel :
- 0.25mm
- Contact Resistance :
- 100MOhm
- Orientation :
- Straight
- Additional Feature :
- REEL PACKAGE
- Actuator Orientation :
- Top Actuated
- Body Breadth :
- 6.1976 mm
- Termination :
- Solder
- Mount :
- Surface Mount
- Contact Timing :
- SNAP ACTION
- Series :
- TL3304
- Terminal Material :
- Brass
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Voltage - Rated DC :
- 12V
- Body Height :
- 2.5908mm
- Dielectric Withstanding Voltage :
- 1000VRMS V
- Body Length or Diameter :
- 6.1976mm
- Contact Rating @ Voltage :
- 0.05A @ 50VDC
- Operating Force :
- 160gf
- Circuit :
- SPST-NO
- Housing Material :
- Polyphenylene
- Contact (DC) Max Rating R Load :
- 0.05A@50VDC
- Mounting Type :
- Surface Mount
- Current Rating :
- 50mA
- Max Voltage Rating (DC) :
- 12V
- Electrical Life :
- 100000 cycles
- Actuator Length :
- 800μm
- Insulation Resistance :
- 100000000Ohm
- Switch Function :
- Off-Mom
- Contact Material :
- Silver
- Illumination :
- Non-Illuminated
- ECCN Code :
- EAR99
- Lead Free :
- Lead Free
- Actuator Material :
- Rubber
- Outline :
- 6.20mm x 6.20mm
- Contact Current(DC)-Max :
- 0.05A
- Operating Temperature :
- -20°C~70°C
- Datasheets
- TL3304AF160QJ
TL3304AF160QJ Documents
TL3304AF160QJ datasheet pdf and Tactile Switches product details from E-Switch stock available at
