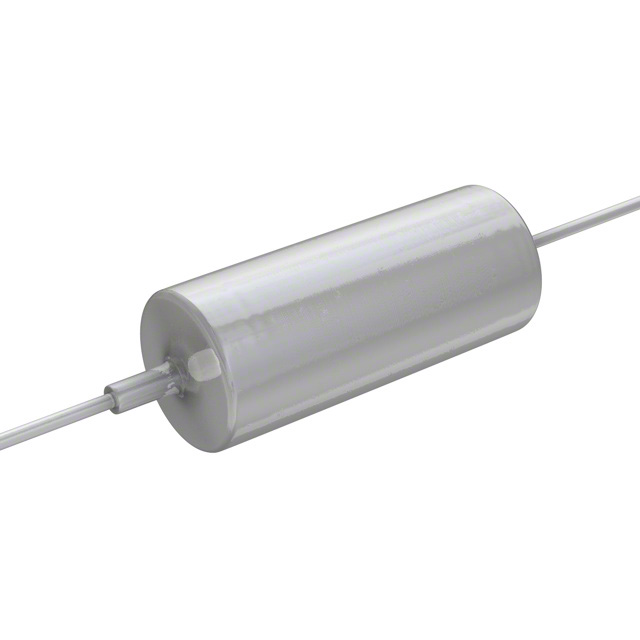

THF476K020P1F-F
Or copy the link below:
- Mfr.Part #
- THF476K020P1F-F
- Manufacturer
- Cornell Dubilier Electronics
- Package / Case
- Axial
- Datasheet
- Download
- Description
- CAP TANT 47UF 10% 20V AXIAL
- Stock
- 4,819
- In Stock ：
- 4,819
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Cornell Dubilier Electronics
- Product Category :
- Tantalum Capacitors
- Diameter :
- 7.34mm
- ESR (Equivalent Series Resistance) :
- 110mOhm
- Ripple Current :
- 2500mA
- Packing Method :
- TR
- Factory Lead Time :
- 10 Weeks
- Manufacturer Size Code :
- F
- Series :
- THF
- Type :
- Hermetically Sealed
- Pbfree Code :
- yes
- Terminal Finish :
- Matte Tin (Sn)
- Tan Delta :
- 0.06
- Terminal Shape :
- Wire
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mount :
- Through Hole
- Reach Compliance Code :
- Unknown
- JESD-609 Code :
- e3
- Polarity :
- POLARIZED
- Voltage - Rated DC :
- 20V
- Size / Dimension :
- 0.289Diax0.686L 7.34mmx17.42mm
- Packaging :
- Bulk
- Tolerance :
- ±10%
- Package / Case :
- Axial
- Feature :
- GENERAL PURPOSE
- Leakage Current :
- 0.0045mA
- Published :
- 2013
- ECCN Code :
- EAR99
- RoHS Status :
- ROHS3 Compliant
- Capacitance :
- 47μF
- Length :
- 20.88mm
- Number of Terminations :
- 2
- Dielectric Material :
- TANTALUM (DRY/SOLID)
- Operating Temperature :
- -55°C~125°C
- Mounting Type :
- Through Hole
- Datasheets
- THF476K020P1F-F
47μF ±10% 110mOhm 2-Termination POLARIZED TANTALUM (DRY/SOLID) 0.0045mA Bulk Axial
THF476K020P1F-F Overview
In this case, the ripple current of the capacitor is set to 2500mA.This resistor has a resistance of 110mOhm, the same value as the equivalent series resistance (ESR), also known as internal resistance.This capacitor leaks current at 0.0045mA.To determine the quality of insulating oil, the Tan Delta test is conducted on it, and its tan delta is 0.06.
THF476K020P1F-F Features
2500mA is the ripple current of the capacitor
a leakage current of 0.0045mA in this capacitor
its tan delta is 0.06
THF476K020P1F-F Applications
There are a lot of Cornell Dubilier Electronics (CDE)
THF476K020P1F-F applications of tantalum capacitors.
- Computer
- General purpose
- General low power DC/DC and LDO
- Automotive ECU
- ABS
- Airbag systems
- Avionics,
- Industrial control units
- Military / aerospace
- General purpose
