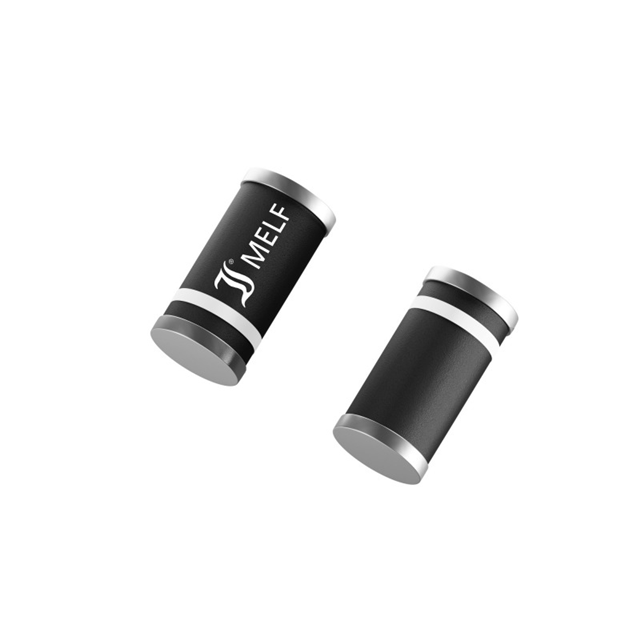

TGL41-9.1A

Manufacturer :

Diotec Semiconductor

Product Category :

Additional Feature :

EXCELLENT CLAMPING CAPABILITY

Number of Elements :

1

Test Current :

1mA

Direction :

Unidirectional

Unidirectional Channels :

1

Breakdown Voltage :

8.65V

Pin Count :

2

Voltage - Reverse Standoff (Typ) :

77.8V

Series :

TransZorb®

Base Part Number :

TGL41

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mounting Type :

Surface Mount

Reverse Standoff Voltage :

7.78V

Power Dissipation-Max :

1W

Power Line Protection :

No

Voltage - Clamping (Max) @ Ipp :

125V

Packaging :

Tape and Reel (TR)

Terminal Finish :

Matte Tin (Sn) - with Nickel (Ni) barrier

Operating Temperature :

-55°C~150°C TJ

Operating Supply Voltage :

7.78V

Case Connection :

Isolated

Terminal Form :

WRAP AROUND

Rep Pk Reverse Voltage-Max :

77.8V

ECCN Code :

EAR99

Peak Reflow Temperature (Cel) :

250

Factory Lead Time :

10 Weeks

Reverse Breakdown Voltage :

8.65V

Pbfree Code :

yes

Mount :

Surface Mount

Diode Element Material :

SILICON

Clamping Voltage :

13.4V

Type :

Zener

Peak Pulse Power :

400W

Element Configuration :

Single

Time@Peak Reflow Temperature-Max (s) :

40

Leakage Current :

5μA

Max Reverse Leakage Current :

5μA

Number of Pins :

2

JESD-609 Code :

e3

Applications :

GENERAL PURPOSE

Published :

2011

Voltage - Breakdown (Min) :

86.5V

Number of Terminations :

2

Package / Case :

DO-213AB, MELF

RoHS Status :

ROHS3 Compliant

Peak Pulse Current :

3.2A

Number of Unidirectional Channels :

1

Max Surge Current :

3.2A

Terminal Position :

END
