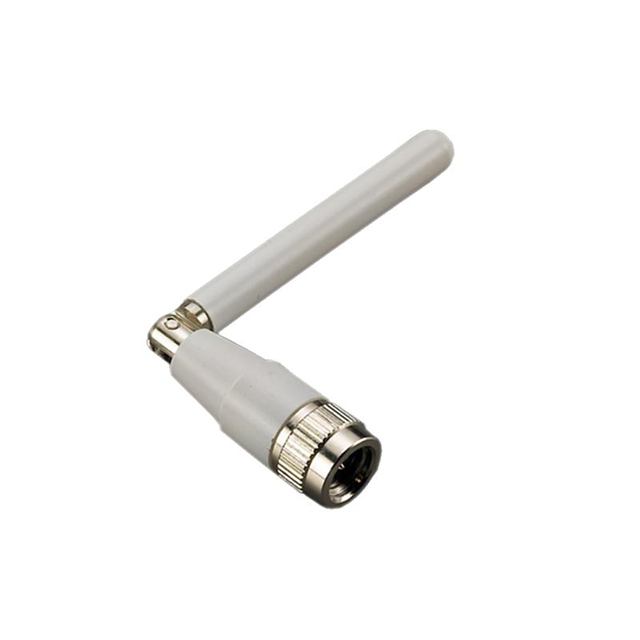

TG.09.0113W
Or copy the link below:
- Mfr.Part #
- TG.09.0113W
- Manufacturer
- Taoglas
- Package / Case
- SMA
- Datasheet
- Download
- Description
- RF ANT 892MHZ/1.9GHZ WHIP TILT
- Stock
- 94
- In Stock ：
- 94
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Taoglas
- Product Category :
- RF Antennas
- Applications :
- CDMA, GSM, UMTS
- Packaging :
- Bulk
- Height :
- 72.009mm
- Height (Max) :
- 2.835 72.00mm
- Impedance :
- 50Ohm
- Number of Bands :
- 2
- Frequency Range :
- 824MHz~960MHz 1.71GHz~2.17GHz
- Frequency (Center/Band) :
- 892MHz 1.9GHz
- Mounting Type :
- Connector Mount
- RF Family/Standard :
- Cellular
- Antenna Type :
- Whip, Tilt
- Power - Max :
- 10W
- Length :
- 72mm
- Termination :
- SMA Male
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- RoHS Status :
- ROHS3 Compliant
- Max Frequency :
- 2.17GHz
- Diameter :
- 10mm
- Factory Lead Time :
- 8 Weeks
- Power Rating :
- 10W
- Frequency Group :
- UHF 300MHz~1GHz UHF 1GHz~2GHz
- Package / Case :
- SMA
- Gain :
- 2dBi, -0.1dBi
- Max Power Dissipation :
- 10W
- Frequency :
- 2.1GHz
- Datasheets
- TG.09.0113W
2 Bands Whip, Tilt UHF 300MHz~1GHz UHF 1GHz~2GHz Connector Mount SMA Male 892MHz 1.9GHz 2dBi, -0.1dBi Bulk 2.835 72.00mm CDMA, GSM, UMTS
TG.09.0113W Overview
A generalization of RF Antennas can be made using Connector Mount.Packaging is solid wRF modulatorh a Bulk enclosure.Shipped in SMA, the RF ic is easy to ship overseas.
TG.09.0113W Features
With Connector Mount
TG.09.0113W Applications
There are a lot of Taoglas Limited
TG.09.0113W RF Antennas applications.
- Satellites
- Transmission
- Cellphones
- Laptops
- Marine Navigation
- Avionics
- GPS
- GLONASS
- BeiDou
- Galileo
