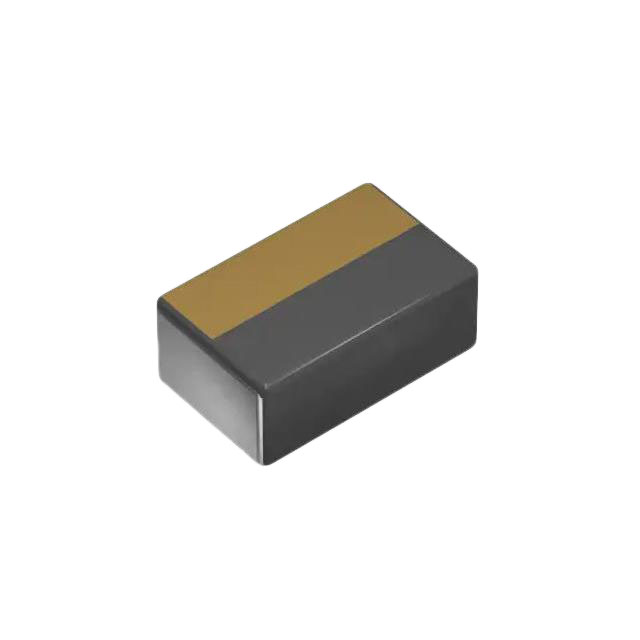

TFM201208BLD-R33MTCA

Manufacturer :

TDK Corporation

Product Category :

Fixed Inductors

Tolerance :

±20%

Inductance :

330 nH

Supplier Device Package :

0805

Material - Core :

Metal

Product Type :

Fixed Inductors

Current - Saturation (Isat) :

5A

Manufacturer :

TDK

Saturation Current :

5.5 A

Operating Temperature :

-40°C ~ 125°C

Product Status :

Active

Frequency - Self Resonant :

-

Test Frequency :

1 MHz

Size / Dimension :

0.079" L x 0.049" W (2.00mm x 1.25mm)

Brand :

TDK

Ratings :

-

Diameter :

-

Subcategory :

Inductors, Chokes and Coils

Current Rating (Amps) :

4 A

Package :

Digi-Reel?

Minimum Operating Temperature :

- 40 C

Packaging :

MouseReel

Mounting Style :

PCB Mount

Height :

0.8 mm

Core Type :

Molded

Features :

-

Product :

Power Inductors

Package / Case :

0805 (2012 Metric)

Series :

TFM-BLD

Product Category :

Power Inductors - SMD

Self Resonant Frequency :

-

Termination Style :

SMD/SMT

Q @ Freq :

-

DC Resistance (DCR) :

32mOhm Max

Mounting Type :

Surface Mount

Width :

1.25 mm

Application :

Power

Core Material :

Metal

Inductance Frequency - Test :

1 MHz

Shielding :

Shielded

Termination :

Standard

Maximum Operating Temperature :

+ 125 C

Type :

Thin Film

Height - Seated (Max) :

0.031" (0.80mm)

RoHS :

Details

Length :

2 mm
