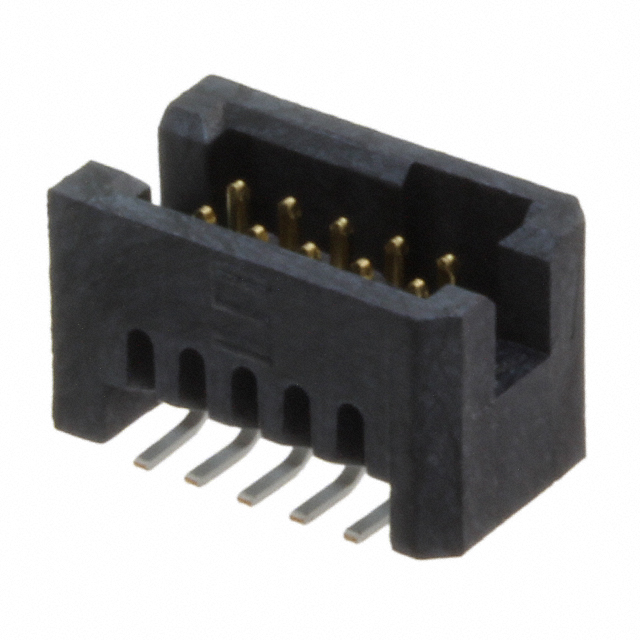

TFM-105-02-S-D

Manufacturer :

Samtec, Inc.

Product Category :

Headers, Male Pins

Option :

GENERAL PURPOSE

Insulation Color :

Black

Connector Type :

Header

Additional Feature :

PICK and PLACE PAD

Style :

Board to Board or Cable

Number of Positions Loaded :

All

Insulation Height :

0.220 5.60mm

Row Spacing - Mating :

0.050 (1.27mm)

Length :

9.53mm

JESD-609 Code :

e3

RoHS Status :

ROHS3 Compliant

Factory Lead Time :

3 Weeks

DIN Conformance :

No

Pitch - Mating :

0.050 1.27mm

Shrouding :

Shrouded - 4 Wall

Fastening Type :

Push-Pull

MIL Conformance :

No

Feature :

Pick and Place

Number of Rows :

2

Operating Temperature :

-55°C~125°C

Series :

Tiger Eye™ TFM

Gender :

Male

Current Rating (Amps) :

2.9A per Contact

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mixed Contacts :

No

Mounting Type :

Surface Mount

Contact Material :

Phosphor Bronze

Voltage - Rated :

275VAC

Reference Standard :

UL

Contact Type :

Male Pin

PCB Contact Pattern :

RECTANGULAR

Packaging :

Tube

Contact Length - Mating :

0.131 3.33mm

Max Voltage Rating (AC) :

350V

Contact Shape :

Square

Polarization Key :

ENDS

Plating Thickness :

30μin

Total Number of Contacts :

10

Reliability :

COMMERCIAL

Radiation Hardening :

No

Filter Feature :

No

Number of Conductors :

ONE

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Contact Finish - Post :

Tin

Depth :

5.72mm

Pbfree Code :

yes

Housing Material :

Polymer

Mating Contact Pitch :

0.05 inch

Insulation Resistance :

5000000000Ohm

Number of Positions :

10

Material Flammability Rating :

UL94 V-0

IEC Conformance :

No

Number Of PCB Rows :

2

Dielectric Withstanding Voltage :

600VAC V

Orientation :

Straight

Contact Finish - Mating :

Gold

Insulation Material :

Liquid Crystal Polymer (LCP)

Termination :

Solder
