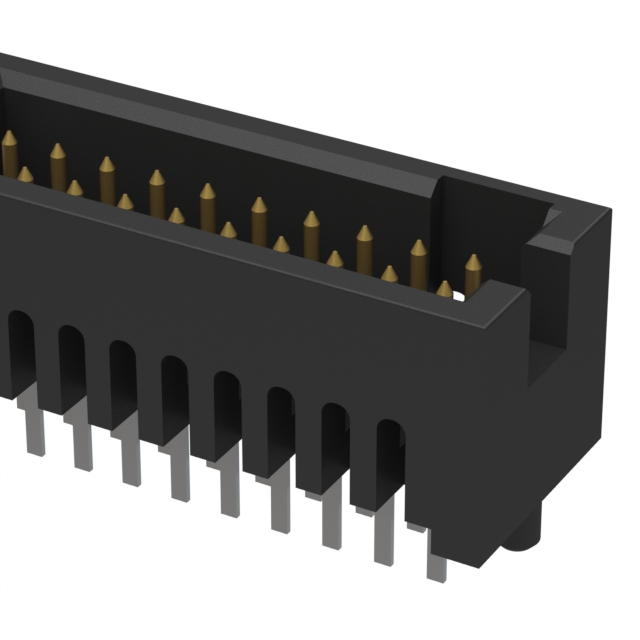

TFC-110-21-F-D-A

Manufacturer :

Samtec, Inc.

Product Category :

Headers, Male Pins

Pitch - Mating :

0.050 1.27mm

DIN Conformance :

No

Number Of PCB Rows :

2

Reliability :

COMMERCIAL

Pbfree Code :

yes

Operating Temperature :

-55°C~125°C

Contact Finish - Mating :

Gold

Factory Lead Time :

3 Weeks

Packaging :

Tube

Contact Finish Thickness - Mating :

3.00μin 0.076μm

Reference Standard :

UL, CSA

Termination :

Solder

Mating Contact Pitch :

0.05 inch

Contact Finish - Post :

Tin

Number of Positions Loaded :

All

Current Rating (Amps) :

3.1A per Contact

Insulation Resistance :

5000000000Ohm

HTS Code :

8536.69.40.40

Style :

Board to Board or Cable

Shrouding :

Shrouded - 4 Wall

Contact Length - Post :

0.080 2.03mm

PCB Contact Pattern :

RECTANGULAR

ECCN Code :

EAR99

Mounting Type :

Through Hole

Insulation Height :

0.360 9.14mm

Number of Conductors :

ONE

Voltage - Rated :

275VAC

Mount :

Through Hole

Filter Feature :

No

Insulation Material :

Liquid Crystal Polymer (LCP)

Feature :

Board Guide

Published :

2012

MIL Conformance :

No

Series :

Tiger Eye™ TFC

Material Flammability Rating :

UL94 V-0

Contact Material :

Phosphor Bronze

Plating Thickness :

FLASH inch

Row Spacing - Mating :

0.050 (1.27mm)

Option :

GENERAL PURPOSE

Contact Type :

Male Pin

Insulation Color :

Black

Contact Shape :

Square

RoHS Status :

ROHS3 Compliant

Contact Resistance :

15mOhm

IEC Conformance :

No

Contact Length - Mating :

0.130 3.30mm

Fastening Type :

Push-Pull

JESD-609 Code :

e3

Additional Feature :

TIGER EYE SYSTEM, SHROUDED

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Positions :

20

Mixed Contacts :

No

Polarization Key :

POLARIZED HOUSING

Number of Rows :

2

Connector Type :

Header

Gender :

Male
