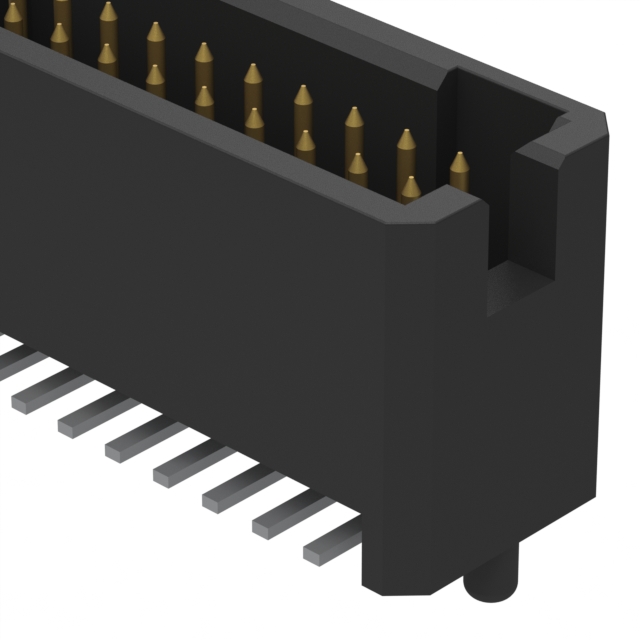

TFC-110-12-F-D-A
Or copy the link below:
- Mfr.Part #
- TFC-110-12-F-D-A
- Manufacturer
- Samtec, Inc.
- Package / Case
- Datasheet
- Download
- Description
- .050 X .050 TERMINAL STRIP
- Stock
- 324
- In Stock ：
- 324
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Samtec, Inc.
- Product Category :
- Headers, Male Pins
- Number Of PCB Rows :
- 2
- Depth :
- 5.72mm
- Connector Type :
- BOARD STACKING CONNECTOR
- Length :
- 15.88mm
- Mounting Option 1 :
- LOCKING
- Plating Thickness :
- FLASH inch
- Filter Feature :
- No
- Reliability :
- COMMERCIAL
- Contact Resistance :
- 15mOhm
- Mating Contact Row Spacing :
- 0.05 inch
- JESD-609 Code :
- e3
- Contact Pattern :
- RECTANGULAR
- Mounting Type :
- BOARD
- Published :
- 2013
- Contact Plating :
- Gold
- Radiation Hardening :
- No
- Termination :
- Solder
- Insulation Resistance :
- 5000000000Ohm
- Pbfree Code :
- yes
- Max Voltage Rating (AC) :
- 350V
- Number of Rows :
- 2
- Polarization Key :
- POLARIZED HOUSING
- Reference Standard :
- UL, CSA
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- MIL Conformance :
- No
- Number of Contacts :
- 20
- Housing Material :
- Polymer
- Orientation :
- Straight
- Gender :
- Male
- Contact Style :
- RND PIN-SKT
- Pitch :
- 1.27mm
- Contact Material :
- Bronze
- Number of Conductors :
- ONE
- RoHS Status :
- ROHS3 Compliant
- Option :
- GENERAL PURPOSE
- Mixed Contacts :
- No
- Factory Lead Time :
- 3 Weeks
- PCB Contact Pattern :
- RECTANGULAR
- REACH SVHC :
- No SVHC
- Housing Color :
- Black
- Min Operating Temperature :
- -55°C
- DIN Conformance :
- No
- Additional Feature :
- TIGER EYE SYSTEM, SHROUDED
- Max Operating Temperature :
- 125°C
- IEC Conformance :
- No
- Datasheets
- TFC-110-12-F-D-A
2-Row BOARD STACKING CONNECTOR Solder Bronze BOARD
TFC-110-12-F-D-A Overview
Packaging is in the form of BOARD STACKING CONNECTOR.This device has a BOARD mounting type.Other features include TIGER EYE SYSTEM, SHROUDED, to name just a few.If the temperature is below 125°C, it's best to use it.-55°C is the minimum temperature for this device.
TFC-110-12-F-D-A Features
TFC-110-12-F-D-A Applications
There are a lot of Samtec Inc.
TFC-110-12-F-D-A Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
